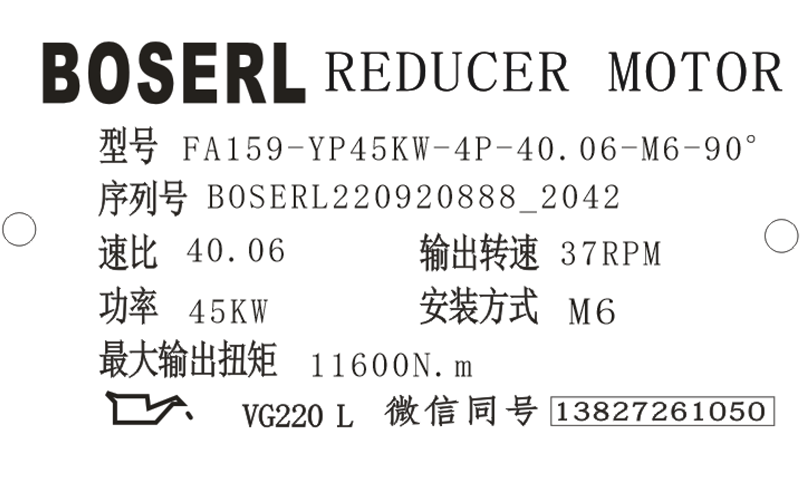

FA159減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F159減速機選型樣本。
FA159-YP45KW-4P-40.06-M6-90°
FA：系列代號
159：減速機規格代號
YP：電機
45KW：電機功率
4P：電機級數
40.06：減速機傳動比
M6：減速機安裝位置
90°：接線盒位置
FA159減速機扭力臂安裝：

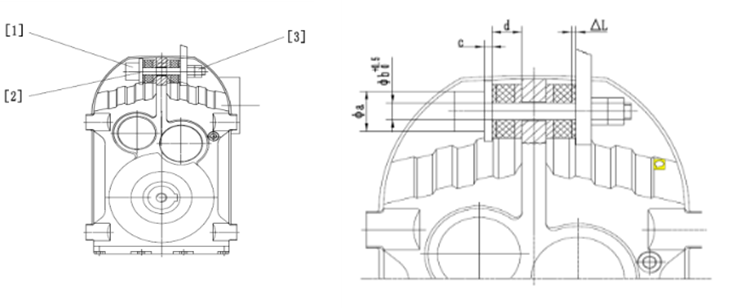

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA159減速機的扭力臂安裝示意圖：齒輪減速電機
減速機型號 | 直 徑 a［mm］ | 橡膠緩沖塊 內徑b［mm］ | 長 度 (未張緊)d［mm］ | 墊片寬度 c［mm］ | △L（張緊） ［mm］ |
FA39減速機 | 40 | 12.5 | 20 | 5 | 1 |
FA49減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA59減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA69減速機 | 40 | 12.5 | 20 | 5 | 1.5 |
FA79減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA89減速機 | 60 | 21 | 30 | 10 | 1.5 |
FA99減速機 | 80 | 25 | 40 | 12 | 2 |
FA109減速機 | 80 | 25 | 40 | 12 | 2 |
FA129減速機 | 100 | 32 | 60 | 15 | 2 |
FA159減速機 | 120 | 32 | 60 | 15 | 2 |
FA159減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA159減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。分體電機減速機

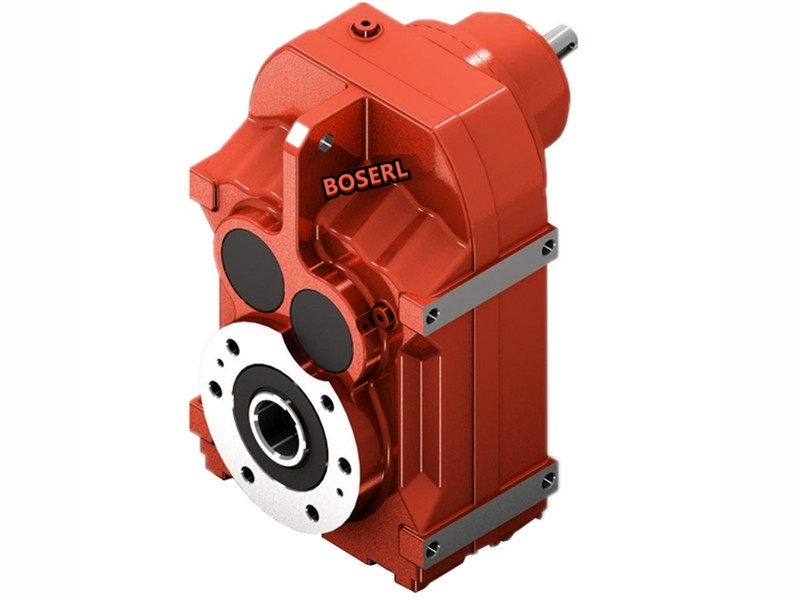

FA159減速機型號：
WFA157-Y110KW，WFA157-Y11KW，WFA157-Y132KW，WFA157-Y15KW，WFA157-Y160M4，WFA157-Y18.5KW，WFA157-Y180M4，WFA157-Y200M4，WFA157-Y225M4，WFA157-Y22KW，WFA157-Y250M4，WFA157-Y280M4，WFA157-Y30KW，WFA157-Y315M4，WFA157-Y37KW，WFA157-Y45KW，WFA157-Y55KW，WFA157-Y75KW，WFA157-Y90KW，WFA157-YB160M4，WFA157-YB180M4，WFA157-YB200M4，WFA157-YB225M4，WFA157-YB250M4，WFA157-YB280M4，WFA157-YB315M4，WFA157-YDP160M4，WFA157-YDP180M4，WFA157-YDP200M4，WFA157-YDP225M4，WFA157-YDP250M4，WFA157-YDP280M4，WFA157-YDP315M4，WFA157-YE160M4，WFA157-YE180M4，WFA157-YE200M4，WFA157-YE225M4，WFA157-YE250M4，WFA157-YE280M4，WFA157-YE315M4，WFA157-YEJ160M4，WFA157-YEJ180M4，WFA157-YEJ200M4，WFA157-YEJ225M4，WFA157-YEJ250M4，WFA157-YEJ280M4，WFA157-YEJ315M4，WFA157-YEJB160M4，WFA157-YEJB180M4，WFA157-YEJB200M4，WFA157-YEJB225M4，WFA157-YEJB250M4，WFA157-YEJB280M4，WFA157-YEJB315M4，WFA157-YP160M4，WFA157-YP180M4，WFA157-YP200M4，WFA157-YP225M4，WFA157-YP250M4，WFA157-YP280M4，WFA157-YP315M4，WFA157-YPB160M4，WFA157-YPB180M4，WFA157-YPB200M4，WFA157-YPB225M4，WFA157-YPB250M4，WFA157-YPB280M4，WFA157-YPB315M4，WFA157-YPE160M4，WFA157-YPE180M4，WFA157-YPE200M4，WFA157-YPE225M4，WFA157-YPE250M4，WFA157-YPE280M4，WFA157-YPE315M4，WFA157-YS160M4，WFA157-YS180M4，WFA157-YS200M4，WFA157-YS225M4，WFA157-YS250M4，WFA157-YS280M4，WFA157-YS315M4，WFA157-YVB160M4，WFA157-YVB180M4，WFA157-YVB200M4，WFA157-YVB225M4，WFA157-YVB250M4，WFA157-YVB280M4，WFA157-YVB315M4，WFA157-YVP160M4，WFA157-YVP180M4，WFA157-YVP200M4，WFA157-YVP225M4，WFA157-YVP250M4，WFA157-YVP280M4，WFA157-YVP315M4，WFA157-YVPEJ160M4，WFA157-YVPEJ180M4，WFA157-YVPEJ200M4，WFA157-YVPEJ225M4，WFA157-YVPEJ250M4，WFA157-YVPEJ280M4，WFA157-YVPEJ315M4，AFA157-Y110KW，AFA157-Y11KW，AFA157-Y132KW，AFA157-Y15KW，AFA157-Y160M4，AFA157-Y18.5KW，AFA157-Y180M4，AFA157-Y200M4，AFA157-Y225M4，AFA157-Y22KW，AFA157-Y250M4，AFA157-Y280M4，AFA157-Y30KW，AFA157-Y315M4，AFA157-Y37KW，AFA157-Y45KW，AFA157-Y55KW，AFA157-Y75KW，AFA157-Y90KW，AFA157-YB160M4，AFA157-YB180M4，AFA157-YB200M4，AFA157-YB225M4，AFA157-YB250M4，AFA157-YB280M4，AFA157-YB315M4，AFA157-YDP160M4，AFA157-YDP180M4，AFA157-YDP200M4，AFA157-YDP225M4，AFA157-YDP250M4，AFA157-YDP280M4，AFA157-YDP315M4，AFA157-YE160M4，AFA157-YE180M4，AFA157-YE200M4，AFA157-YE225M4，AFA157-YE250M4，AFA157-YE280M4，AFA157-YE315M4，AFA157-YEJ160M4，AFA157-YEJ180M4，AFA157-YEJ200M4，AFA157-YEJ225M4，AFA157-YEJ250M4，AFA157-YEJ280M4，AFA157-YEJ315M4，AFA157-YEJB160M4，AFA157-YEJB180M4，AFA157-YEJB200M4，AFA157-YEJB225M4，AFA157-YEJB250M4，AFA157-YEJB280M4，AFA157-YEJB315M4，AFA157-YP160M4，AFA157-YP180M4，AFA157-YP200M4，AFA157-YP225M4，AFA157-YP250M4，AFA157-YP280M4，AFA157-YP315M4，AFA157-YPB160M4，AFA157-YPB180M4，AFA157-YPB200M4，AFA157-YPB225M4，AFA157-YPB250M4，AFA157-YPB280M4，AFA157-YPB315M4，AFA157-YPE160M4，AFA157-YPE180M4，AFA157-YPE200M4，AFA157-YPE225M4，AFA157-YPE250M4，AFA157-YPE280M4，AFA157-YPE315M4，AFA157-YS160M4，AFA157-YS180M4，AFA157-YS200M4，AFA157-YS225M4，AFA157-YS250M4，AFA157-YS280M4，AFA157-YS315M4，AFA157-YVB160M4，AFA157-YVB180M4，AFA157-YVB200M4，AFA157-YVB225M4，AFA157-YVB250M4，AFA157-YVB280M4，AFA157-YVB315M4，AFA157-YVP160M4，AFA157-YVP180M4，AFA157-YVP200M4，AFA157-YVP225M4，AFA157-YVP250M4，AFA157-YVP280M4，AFA157-YVP315M4，AFA157-YVPEJ160M4，AFA157-YVPEJ180M4，AFA157-YVPEJ200M4，AFA157-YVPEJ225M4，AFA157-YVPEJ250M4，AFA157-YVPEJ280M4，AFA157-YVPEJ315M4，NFA157-Y110KW，NFA157-Y11KW，NFA157-Y132KW，NFA157-Y15KW，NFA157-Y160M4，NFA157-Y18.5KW，NFA157-Y180M4，NFA157-Y200M4，NFA157-Y225M4，NFA157-Y22KW，NFA157-Y250M4，NFA157-Y280M4，NFA157-Y30KW，NFA157-Y315M4，NFA157-Y37KW，NFA157-Y45KW，NFA157-Y55KW，NFA157-Y75KW，NFA157-Y90KW，NFA157-YB160M4，NFA157-YB180M4，NFA157-YB200M4，NFA157-YB225M4，NFA157-YB250M4，NFA157-YB280M4，NFA157-YB315M4，NFA157-YDP160M4，NFA157-YDP180M4，NFA157-YDP200M4，NFA157-YDP225M4，NFA157-YDP250M4，NFA157-YDP280M4，NFA157-YDP315M4，NFA157-YE160M4，NFA157-YE180M4，NFA157-YE200M4，NFA157-YE225M4，NFA157-YE250M4，NFA157-YE280M4，NFA157-YE315M4，NFA157-YEJ160M4，NFA157-YEJ180M4，NFA157-YEJ200M4，NFA157-YEJ225M4，NFA157-YEJ250M4，NFA157-YEJ280M4，NFA157-YEJ315M4，NFA157-YEJB160M4，NFA157-YEJB180M4，NFA157-YEJB200M4，NFA157-YEJB225M4，NFA157-YEJB250M4，NFA157-YEJB280M4，NFA157-YEJB315M4，NFA157-YP160M4，NFA157-YP180M4，NFA157-YP200M4，NFA157-YP225M4，NFA157-YP250M4，NFA157-YP280M4，NFA157-YP315M4，NFA157-YPB160M4，NFA157-YPB180M4，NFA157-YPB200M4，NFA157-YPB225M4，NFA157-YPB250M4，NFA157-YPB280M4，NFA157-YPB315M4，NFA157-YPE160M4，NFA157-YPE180M4，NFA157-YPE200M4，NFA157-YPE225M4，NFA157-YPE250M4，NFA157-YPE280M4，NFA157-YPE315M4，NFA157-YS160M4，NFA157-YS180M4，NFA157-YS200M4，NFA157-YS225M4，NFA157-YS250M4，NFA157-YS280M4，NFA157-YS315M4，NFA157-YVB160M4，NFA157-YVB180M4，NFA157-YVB200M4，NFA157-YVB225M4，NFA157-YVB250M4，NFA157-YVB280M4，NFA157-YVB315M4，NFA157-YVP160M4，NFA157-YVP180M4，NFA157-YVP200M4，NFA157-YVP225M4，NFA157-YVP250M4，NFA157-YVP280M4，NFA157-YVP315M4，NFA157-YVPEJ160M4，NFA157-YVPEJ180M4，NFA157-YVPEJ200M4，NFA157-YVPEJ225M4，NFA157-YVPEJ250M4，NFA157-YVPEJ280M4，NFA157-YVPEJ315M4，SFA157-Y110KW，SFA157-Y11KW，SFA157-Y132KW，SFA157-Y15KW，SFA157-Y160M4，SFA157-Y18.5KW，SFA157-Y180M4，SFA157-Y200M4，SFA157-Y225M4，SFA157-Y22KW，SFA157-Y250M4，SFA157-Y280M4，SFA157-Y30KW，SFA157-Y315M4，SFA157-Y37KW，SFA157-Y45KW，SFA157-Y55KW，SFA157-Y75KW，SFA157-Y90KW，SFA157-YB160M4，SFA157-YB180M4，SFA157-YB200M4，SFA157-YB225M4，SFA157-YB250M4，SFA157-YB280M4，SFA157-YB315M4，SFA157-YDP160M4，SFA157-YDP180M4，SFA157-YDP200M4，SFA157-YDP225M4，SFA157-YDP250M4，SFA157-YDP280M4，SFA157-YDP315M4，SFA157-YE160M4，SFA157-YE180M4，SFA157-YE200M4，SFA157-YE225M4，SFA157-YE250M4，SFA157-YE280M4，SFA157-YE315M4，SFA157-YEJ160M4，SFA157-YEJ180M4，SFA157-YEJ200M4，SFA157-YEJ225M4，SFA157-YEJ250M4，SFA157-YEJ280M4，SFA157-YEJ315M4，SFA157-YEJB160M4，SFA157-YEJB180M4，SFA157-YEJB200M4，SFA157-YEJB225M4，SFA157-YEJB250M4，SFA157-YEJB280M4，SFA157-YEJB315M4，SFA157-YP160M4，SFA157-YP180M4，SFA157-YP200M4，SFA157-YP225M4，SFA157-YP250M4，SFA157-YP280M4，SFA157-YP315M4，SFA157-YPB160M4，SFA157-YPB180M4，SFA157-YPB200M4，SFA157-YPB225M4，SFA157-YPB250M4，SFA157-YPB280M4，SFA157-YPB315M4，SFA157-YPE160M4，SFA157-YPE180M4，SFA157-YPE200M4，SFA157-YPE225M4，SFA157-YPE250M4，SFA157-YPE280M4，SFA157-YPE315M4，SFA157-YS160M4，SFA157-YS180M4，SFA157-YS200M4，SFA157-YS225M4，SFA157-YS250M4，SFA157-YS280M4，SFA157-YS315M4，SFA157-YVB160M4，SFA157-YVB180M4，SFA157-YVB200M4，SFA157-YVB225M4，SFA157-YVB250M4，SFA157-YVB280M4，SFA157-YVB315M4，SFA157-YVP160M4，SFA157-YVP180M4，SFA157-YVP200M4，SFA157-YVP225M4，SFA157-YVP250M4，SFA157-YVP280M4，SFA157-YVP315M4，SFA157-YVPEJ160M4，SFA157-YVPEJ180M4，SFA157-YVPEJ200M4，SFA157-YVPEJ225M4，SFA157-YVPEJ250M4，SFA157-YVPEJ280M4，SFA157-YVPEJ315M4，GFA159-Y110KW，GFA159-Y11KW，GFA159-Y132KW，GFA159-Y15KW，GFA159-Y160M4，GFA159-Y18.5KW，GFA159-Y180M4，GFA159-Y200M4，GFA159-Y225M4，GFA159-Y22KW，GFA159-Y250M4，GFA159-Y280M4，GFA159-Y30KW，GFA159-Y315M4，GFA159-Y37KW，GFA159-Y45KW，GFA159-Y55KW，GFA159-Y75KW，GFA159-Y90KW，GFA159-YB160M4，GFA159-YB180M4，GFA159-YB200M4，GFA159-YB225M4，GFA159-YB250M4，GFA159-YB280M4，GFA159-YB315M4，GFA159-YDP160M4，GFA159-YDP180M4，GFA159-YDP200M4，GFA159-YDP225M4，GFA159-YDP250M4，GFA159-YDP280M4，GFA159-YDP315M4，GFA159-YE160M4，GFA159-YE180M4，GFA159-YE200M4，GFA159-YE225M4，GFA159-YE250M4，GFA159-YE280M4，GFA159-YE315M4，GFA159-YEJ160M4，GFA159-YEJ180M4，GFA159-YEJ200M4，GFA159-YEJ225M4，GFA159-YEJ250M4，GFA159-YEJ280M4，GFA159-YEJ315M4，GFA159-YEJB160M4，GFA159-YEJB180M4，GFA159-YEJB200M4，GFA159-YEJB225M4，GFA159-YEJB250M4，GFA159-YEJB280M4，GFA159-YEJB315M4，GFA159-YP160M4，GFA159-YP180M4，GFA159-YP200M4，GFA159-YP225M4，GFA159-YP250M4，GFA159-YP280M4，GFA159-YP315M4，GFA159-YPB160M4，GFA159-YPB180M4，GFA159-YPB200M4，GFA159-YPB225M4，GFA159-YPB250M4，GFA159-YPB280M4，GFA159-YPB315M4，GFA159-YPE160M4，GFA159-YPE180M4，GFA159-YPE200M4，GFA159-YPE225M4，GFA159-YPE250M4，GFA159-YPE280M4，GFA159-YPE315M4，GFA159-YS160M4，GFA159-YS180M4，GFA159-YS200M4，GFA159-YS225M4，GFA159-YS250M4，GFA159-YS280M4，GFA159-YS315M4，GFA159-YVB160M4，GFA159-YVB180M4，GFA159-YVB200M4，GFA159-YVB225M4，GFA159-YVB250M4，GFA159-YVB280M4，GFA159-YVB315M4，GFA159-YVP160M4，GFA159-YVP180M4，GFA159-YVP200M4，GFA159-YVP225M4，GFA159-YVP250M4，GFA159-YVP280M4，GFA159-YVP315M4，GFA159-YVPEJ160M4，GFA159-YVPEJ180M4，GFA159-YVPEJ200M4，GFA159-YVPEJ225M4，GFA159-YVPEJ250M4，GFA159-YVPEJ280M4，GFA159-YVPEJ315M4。
FA159減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-faxiliejiansuji-cn.html
推薦類似型號：F159減速機
關鍵詞:分體減速機帶電機_分體電機減速機_分體減速機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機一體機生產廠家

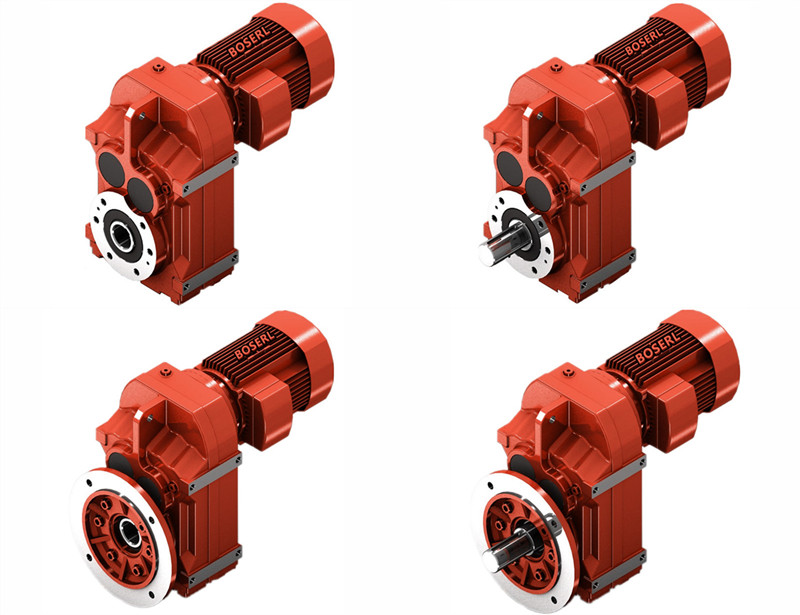

FA系列齒輪減速電機型號：FA29減速機,FA39減速機,FA49減速機,FA69減速機,FA79減速機,FA89減速機,FA99減速機,FA109減速機,FA129減速機,FA159減速機
FA系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
