KF69減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K69減速機選型樣本。

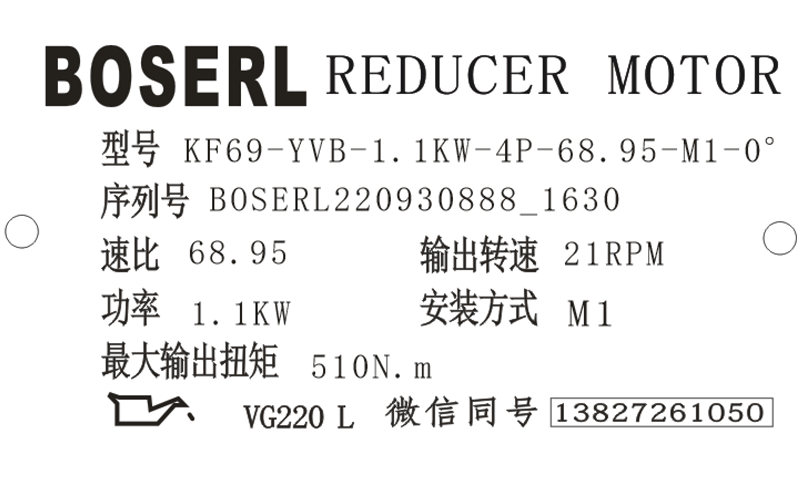

KF69-YVB-1.1KW-4P-68.95-M1-0°

KF：系列代號

69：減速機規格代號

YVB：電機

1.1KW：電機功率

4P：電機級數

68.95：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

KF69減速機潤滑油型號：

KF69減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF69減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF69減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF69減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF69減速機選型樣本中列出了安裝位置從M1到M6KF69減速機相應的潤滑油加注標準，請自行下載查看。

KF69減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF69減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF69減速機使用說明：

KF69減速機警告說明：由于KF69減速機發熱或KF69減速機油溫過高可能引起燙傷；對KF69減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF69減速機注意事項：若未注入正確的KF69減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF69減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF69減速機說明書安裝位置章節中的內容。

KF69減速機的螺母：立式安裝KF69減速機輸出法蘭螺母規格M12；KF69減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF69減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF69減速機型號：

WKF67-Y0.18SKF，WKF67-Y0.25SKF，WKF67-Y0.37SKF，WKF67-Y0.55SKF，WKF67-Y0.75SKF，WKF67-Y1.1SKF，WKF67-Y1.5SKF，WKF67-Y100M4，WKF67-Y112M4，WKF67-Y2.2SKF，WKF67-Y3SKF，WKF67-Y4SKF，WKF67-Y5.5SKF，WKF67-Y63M4，WKF67-Y71M4，WKF67-Y80M4，WKF67-Y90M4，WKF67-YB100M4，WKF67-YB112M4，WKF67-YB132M4，WKF67-YB63M4，WKF67-YB71M4，WKF67-YB80M4，WKF67-YB90M4，WKF67-YDP100M4，WKF67-YDP112M4，WKF67-YDP132M4，WKF67-YDP63M4，WKF67-YDP71M4，WKF67-YDP80M4，WKF67-YDP90M4，WKF67-YE100M4，WKF67-YE112M4，WKF67-YE132M4，WKF67-YE63M4，WKF67-YE71M4，WKF67-YE80M4，WKF67-YE90M4，WKF67-YEJ100M4，WKF67-YEJ112M4，WKF67-YEJ132M4，WKF67-YEJ63M4，WKF67-YEJ71M4，WKF67-YEJ80M4，WKF67-YEJ90M4，WKF67-YEJB100M4，WKF67-YEJB112M4，WKF67-YEJB132M4，WKF67-YEJB63M4，WKF67-YEJB71M4，WKF67-YEJB80M4，WKF67-YEJB90M4，WKF67-YP100M4，WKF67-YP112M4，WKF67-YP132M4，WKF67-YP63M4，WKF67-YP71M4，WKF67-YP80M4，WKF67-YP90M4，WKF67-YPB100M4，WKF67-YPB112M4，WKF67-YPB132M4，WKF67-YPB63M4，WKF67-YPB71M4，WKF67-YPB80M4，WKF67-YPB90M4，WKF67-YPE100M4，WKF67-YPE112M4，WKF67-YPE132M4，WKF67-YPE63M4，WKF67-YPE71M4，WKF67-YPE80M4，WKF67-YPE90M4，WKF67-YS100M4，WKF67-YS112M4，WKF67-YS132M4，WKF67-YS63M4，WKF67-YS71M4，WKF67-YS80M4，WKF67-YS90M4，WKF67-YVB100M4，WKF67-YVB112M4，WKF67-YVB132M4，WKF67-YVB63M4，WKF67-YVB71M4，WKF67-YVB80M4，WKF67-YVB90M4，WKF67-YVP100M4，WKF67-YVP112M4，WKF67-YVP132M4，WKF67-YVP63M4，WKF67-YVP71M4，WKF67-YVP80M4，WKF67-YVP90M4，WKF67-YVPEJ100M4，WKF67-YVPEJ112M4，WKF67-YVPEJ132M4，WKF67-YVPEJ63M4，WKF67-YVPEJ71M4，WKF67-YVPEJ80M4，WKF67-YVPEJ90M4，NKF67-Y0.18SKF，NKF67-Y0.25SKF，NKF67-Y0.37SKF，NKF67-Y0.55SKF，NKF67-Y0.75SKF，NKF67-Y1.1SKF，NKF67-Y1.5SKF，NKF67-Y100M4，NKF67-Y112M4，NKF67-Y2.2SKF，NKF67-Y3SKF，NKF67-Y4SKF，NKF67-Y5.5SKF，NKF67-Y63M4，NKF67-Y71M4，NKF67-Y80M4，NKF67-Y90M4，NKF67-YB100M4，NKF67-YB112M4，NKF67-YB132M4，NKF67-YB63M4，NKF67-YB71M4，NKF67-YB80M4，NKF67-YB90M4，NKF67-YDP100M4，NKF67-YDP112M4，NKF67-YDP132M4，NKF67-YDP63M4，NKF67-YDP71M4，NKF67-YDP80M4，NKF67-YDP90M4，NKF67-YE100M4，NKF67-YE112M4，NKF67-YE132M4，NKF67-YE63M4，NKF67-YE71M4，NKF67-YE80M4，NKF67-YE90M4，NKF67-YEJ100M4，NKF67-YEJ112M4，NKF67-YEJ132M4，NKF67-YEJ63M4，NKF67-YEJ71M4，NKF67-YEJ80M4，NKF67-YEJ90M4，NKF67-YEJB100M4，NKF67-YEJB112M4，NKF67-YEJB132M4，NKF67-YEJB63M4，NKF67-YEJB71M4，NKF67-YEJB80M4，NKF67-YEJB90M4，NKF67-YP100M4，NKF67-YP112M4，NKF67-YP132M4，NKF67-YP63M4，NKF67-YP71M4，NKF67-YP80M4，NKF67-YP90M4，NKF67-YPB100M4，NKF67-YPB112M4，NKF67-YPB132M4，NKF67-YPB63M4，NKF67-YPB71M4，NKF67-YPB80M4，NKF67-YPB90M4，NKF67-YPE100M4，NKF67-YPE112M4，NKF67-YPE132M4，NKF67-YPE63M4，NKF67-YPE71M4，NKF67-YPE80M4，NKF67-YPE90M4，NKF67-YS100M4，NKF67-YS112M4，NKF67-YS132M4，NKF67-YS63M4，NKF67-YS71M4，NKF67-YS80M4，NKF67-YS90M4，NKF67-YVB100M4，NKF67-YVB112M4，NKF67-YVB132M4，NKF67-YVB63M4，NKF67-YVB71M4，NKF67-YVB80M4，NKF67-YVB90M4，NKF67-YVP100M4，NKF67-YVP112M4，NKF67-YVP132M4，NKF67-YVP63M4，NKF67-YVP71M4，NKF67-YVP80M4，NKF67-YVP90M4，NKF67-YVPEJ100M4，NKF67-YVPEJ112M4，NKF67-YVPEJ132M4，NKF67-YVPEJ63M4，NKF67-YVPEJ71M4，NKF67-YVPEJ80M4，NKF67-YVPEJ90M4，AKF67-Y0.18SKF，AKF67-Y0.25SKF，AKF67-Y0.37SKF，AKF67-Y0.55SKF，AKF67-Y0.75SKF，AKF67-Y1.1SKF，AKF67-Y1.5SKF，AKF67-Y100M4，AKF67-Y112M4，AKF67-Y2.2SKF，AKF67-Y3SKF，AKF67-Y4SKF，AKF67-Y5.5SKF，AKF67-Y63M4，AKF67-Y71M4，AKF67-Y80M4，AKF67-Y90M4，AKF67-YB100M4，AKF67-YB112M4，AKF67-YB132M4，AKF67-YB63M4，AKF67-YB71M4，AKF67-YB80M4，AKF67-YB90M4，AKF67-YDP100M4，AKF67-YDP112M4，AKF67-YDP132M4，AKF67-YDP63M4，AKF67-YDP71M4，AKF67-YDP80M4，AKF67-YDP90M4，AKF67-YE100M4，AKF67-YE112M4，AKF67-YE132M4，AKF67-YE63M4，AKF67-YE71M4，AKF67-YE80M4，AKF67-YE90M4，AKF67-YEJ100M4，AKF67-YEJ112M4，AKF67-YEJ132M4，AKF67-YEJ63M4，AKF67-YEJ71M4，AKF67-YEJ80M4，AKF67-YEJ90M4，AKF67-YEJB100M4，AKF67-YEJB112M4，AKF67-YEJB132M4，AKF67-YEJB63M4，AKF67-YEJB71M4，AKF67-YEJB80M4，AKF67-YEJB90M4，AKF67-YP100M4，AKF67-YP112M4，AKF67-YP132M4，AKF67-YP63M4，AKF67-YP71M4，AKF67-YP80M4，AKF67-YP90M4，AKF67-YPB100M4，AKF67-YPB112M4，AKF67-YPB132M4，AKF67-YPB63M4，AKF67-YPB71M4，AKF67-YPB80M4，AKF67-YPB90M4，AKF67-YPE100M4，AKF67-YPE112M4，AKF67-YPE132M4，AKF67-YPE63M4，AKF67-YPE71M4，AKF67-YPE80M4，AKF67-YPE90M4，AKF67-YS100M4，AKF67-YS112M4，AKF67-YS132M4，AKF67-YS63M4，AKF67-YS71M4，AKF67-YS80M4，AKF67-YS90M4，AKF67-YVB100M4，AKF67-YVB112M4，AKF67-YVB132M4，AKF67-YVB63M4，AKF67-YVB71M4，AKF67-YVB80M4，AKF67-YVB90M4，AKF67-YVP100M4，AKF67-YVP112M4，AKF67-YVP132M4，AKF67-YVP63M4，AKF67-YVP71M4，AKF67-YVP80M4，AKF67-YVP90M4，AKF67-YVPEJ100M4，AKF67-YVPEJ112M4，AKF67-YVPEJ132M4，AKF67-YVPEJ63M4，AKF67-YVPEJ71M4，AKF67-YVPEJ80M4，AKF67-YVPEJ90M4，SKF67-Y0.18SKF，SKF67-Y0.25SKF，SKF67-Y0.37SKF，SKF67-Y0.55SKF，SKF67-Y0.75SKF，SKF67-Y1.1SKF，SKF67-Y1.5SKF，SKF67-Y100M4，SKF67-Y112M4，SKF67-Y2.2SKF，SKF67-Y3SKF，SKF67-Y4SKF，SKF67-Y5.5SKF，SKF67-Y63M4，SKF67-Y71M4，SKF67-Y80M4，SKF67-Y90M4，SKF67-YB100M4，SKF67-YB112M4，SKF67-YB132M4，SKF67-YB63M4，SKF67-YB71M4，SKF67-YB80M4，SKF67-YB90M4，SKF67-YDP100M4，SKF67-YDP112M4，SKF67-YDP132M4，SKF67-YDP63M4，SKF67-YDP71M4，SKF67-YDP80M4，SKF67-YDP90M4，SKF67-YE100M4，SKF67-YE112M4，SKF67-YE132M4，SKF67-YE63M4，SKF67-YE71M4，SKF67-YE80M4，SKF67-YE90M4，SKF67-YEJ100M4，SKF67-YEJ112M4，SKF67-YEJ132M4，SKF67-YEJ63M4，SKF67-YEJ71M4，SKF67-YEJ80M4，SKF67-YEJ90M4，SKF67-YEJB100M4，SKF67-YEJB112M4，SKF67-YEJB132M4，SKF67-YEJB63M4，SKF67-YEJB71M4，SKF67-YEJB80M4，SKF67-YEJB90M4，SKF67-YP100M4，SKF67-YP112M4，SKF67-YP132M4，SKF67-YP63M4，SKF67-YP71M4，SKF67-YP80M4，SKF67-YP90M4，SKF67-YPB100M4，SKF67-YPB112M4，SKF67-YPB132M4，SKF67-YPB63M4，SKF67-YPB71M4，SKF67-YPB80M4，SKF67-YPB90M4，SKF67-YPE100M4，SKF67-YPE112M4，SKF67-YPE132M4，SKF67-YPE63M4，SKF67-YPE71M4，SKF67-YPE80M4，SKF67-YPE90M4，SKF67-YS100M4，SKF67-YS112M4，SKF67-YS132M4，SKF67-YS63M4，SKF67-YS71M4，SKF67-YS80M4，SKF67-YS90M4，SKF67-YVB100M4，SKF67-YVB112M4，SKF67-YVB132M4，SKF67-YVB63M4，SKF67-YVB71M4，SKF67-YVB80M4，SKF67-YVB90M4，SKF67-YVP100M4，SKF67-YVP112M4，SKF67-YVP132M4，SKF67-YVP63M4，SKF67-YVP71M4，SKF67-YVP80M4，SKF67-YVP90M4，SKF67-YVPEJ100M4，SKF67-YVPEJ112M4，SKF67-YVPEJ132M4，SKF67-YVPEJ63M4，SKF67-YVPEJ71M4，SKF67-YVPEJ80M4，SKF67-YVPEJ90M4，GKF69-Y0.18SKF，GKF69-Y0.25SKF，GKF69-Y0.37SKF，GKF69-Y0.55SKF，GKF69-Y0.75SKF，GKF69-Y1.1SKF，GKF69-Y1.5SKF，GKF69-Y100M4，GKF69-Y112M4，GKF69-Y2.2SKF，GKF69-Y3SKF，GKF69-Y4SKF，GKF69-Y5.5SKF，GKF69-Y63M4，GKF69-Y71M4，GKF69-Y80M4，GKF69-Y90M4，GKF69-YB100M4，GKF69-YB112M4，GKF69-YB132M4，GKF69-YB63M4，GKF69-YB71M4，GKF69-YB80M4，GKF69-YB90M4，GKF69-YDP100M4，GKF69-YDP112M4，GKF69-YDP132M4，GKF69-YDP63M4，GKF69-YDP71M4，GKF69-YDP80M4，GKF69-YDP90M4，GKF69-YE100M4，GKF69-YE112M4，GKF69-YE132M4，GKF69-YE63M4，GKF69-YE71M4，GKF69-YE80M4，GKF69-YE90M4，GKF69-YEJ100M4，GKF69-YEJ112M4，GKF69-YEJ132M4，GKF69-YEJ63M4，GKF69-YEJ71M4，GKF69-YEJ80M4，GKF69-YEJ90M4，GKF69-YEJB100M4，GKF69-YEJB112M4，GKF69-YEJB132M4，GKF69-YEJB63M4，GKF69-YEJB71M4，GKF69-YEJB80M4，GKF69-YEJB90M4，GKF69-YP100M4，GKF69-YP112M4，GKF69-YP132M4，GKF69-YP63M4，GKF69-YP71M4，GKF69-YP80M4，GKF69-YP90M4，GKF69-YPB100M4，GKF69-YPB112M4，GKF69-YPB132M4，GKF69-YPB63M4，GKF69-YPB71M4，GKF69-YPB80M4，GKF69-YPB90M4，GKF69-YPE100M4，GKF69-YPE112M4，GKF69-YPE132M4，GKF69-YPE63M4，GKF69-YPE71M4，GKF69-YPE80M4，GKF69-YPE90M4，GKF69-YS100M4，GKF69-YS112M4，GKF69-YS132M4，GKF69-YS63M4，GKF69-YS71M4，GKF69-YS80M4，GKF69-YS90M4，GKF69-YVB100M4，GKF69-YVB112M4，GKF69-YVB132M4，GKF69-YVB63M4，GKF69-YVB71M4，GKF69-YVB80M4，GKF69-YVB90M4，GKF69-YVP100M4，GKF69-YVP112M4，GKF69-YVP132M4，GKF69-YVP63M4，GKF69-YVP71M4，GKF69-YVP80M4，GKF69-YVP90M4，GKF69-YVPEJ100M4，GKF69-YVPEJ112M4，GKF69-YVPEJ132M4，GKF69-YVPEJ63M4，GKF69-YVPEJ71M4，GKF69-YVPEJ80M4，GKF69-YVPEJ90M4。

KF69減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K69減速機
