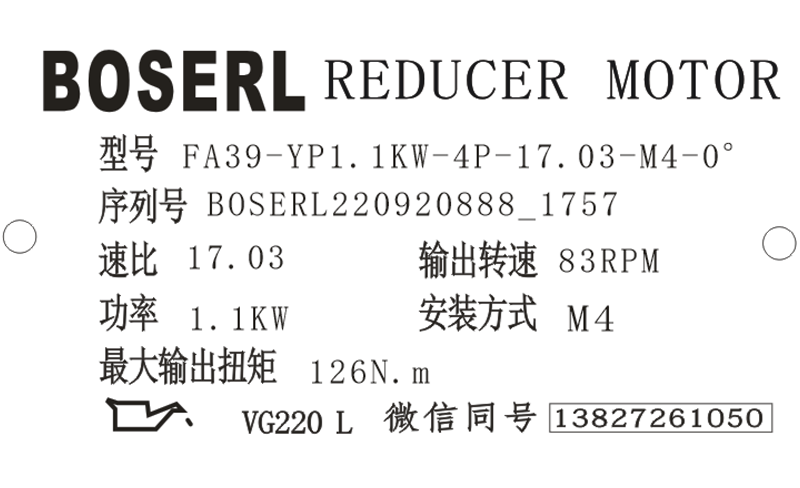

FA39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F39減速機選型樣本。

FA39-YP1.1KW-4P-17.03-M4-0°

FA：系列代號

39：減速機規格代號

YP：電機

1.1KW：電機功率

4P：電機級數

17.03：減速機傳動比

M4：減速機安裝位置

0°：接線盒位置

FA39減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA39減速機的扭力臂安裝示意圖：齒輪減速電機

FA39減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA39減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA39減速機型號：

NFA37-Y0.12KW，NFA37-Y0.18KW，NFA37-Y0.25KW，NFA37-Y0.37KW，NFA37-Y0.55KW，NFA37-Y0.75KW，NFA37-Y1.1KW，NFA37-Y1.5KW，NFA37-Y100M4，NFA37-Y2.2KW，NFA37-Y3KW，NFA37-Y63M4，NFA37-Y71M4，NFA37-Y80M4，NFA37-Y90M4，NFA37-YB100M4，NFA37-YB63M4，NFA37-YB71M4，NFA37-YB80M4，NFA37-YB90M4，NFA37-YDP100M4，NFA37-YDP63M4，NFA37-YDP71M4，NFA37-YDP80M4，NFA37-YDP90M4，NFA37-YE100M4，NFA37-YE63M4，NFA37-YE71M4，NFA37-YE80M4，NFA37-YE90M4，NFA37-YEJ100M4，NFA37-YEJ63M4，NFA37-YEJ71M4，NFA37-YEJ80M4，NFA37-YEJ90M4，NFA37-YEJB100M4，NFA37-YEJB63M4，NFA37-YEJB71M4，NFA37-YEJB80M4，NFA37-YEJB90M4，NFA37-YP100M4，NFA37-YP63M4，NFA37-YP71M4，NFA37-YP80M4，NFA37-YP90M4，NFA37-YPB100M4，NFA37-YPB63M4，NFA37-YPB71M4，NFA37-YPB80M4，NFA37-YPB90M4，NFA37-YPE100M4，NFA37-YPE63M4，NFA37-YPE71M4，NFA37-YPE80M4，NFA37-YPE90M4，NFA37-YS100M4，NFA37-YS63M4，NFA37-YS71M4，NFA37-YS80M4，NFA37-YS90M4，NFA37-YVB100M4，NFA37-YVB63M4，NFA37-YVB71M4，NFA37-YVB80M4，NFA37-YVB90M4，NFA37-YVP100M4，NFA37-YVP63M4，NFA37-YVP71M4，NFA37-YVP80M4，NFA37-YVP90M4，NFA37-YVPEJ100M4，NFA37-YVPEJ63M4，NFA37-YVPEJ71M4，NFA37-YVPEJ80M4，NFA37-YVPEJ90M4，SFA37-Y0.12KW，SFA37-Y0.18KW，SFA37-Y0.25KW，SFA37-Y0.37KW，SFA37-Y0.55KW，SFA37-Y0.75KW，SFA37-Y1.1KW，SFA37-Y1.5KW，SFA37-Y100M4，SFA37-Y2.2KW，SFA37-Y3KW，SFA37-Y63M4，SFA37-Y71M4，SFA37-Y80M4，SFA37-Y90M4，SFA37-YB100M4，SFA37-YB63M4，SFA37-YB71M4，SFA37-YB80M4，SFA37-YB90M4，SFA37-YDP100M4，SFA37-YDP63M4，SFA37-YDP71M4，SFA37-YDP80M4，SFA37-YDP90M4，SFA37-YE100M4，SFA37-YE63M4，SFA37-YE71M4，SFA37-YE80M4，SFA37-YE90M4，SFA37-YEJ100M4，SFA37-YEJ63M4，SFA37-YEJ71M4，SFA37-YEJ80M4，SFA37-YEJ90M4，SFA37-YEJB100M4，SFA37-YEJB63M4，SFA37-YEJB71M4，SFA37-YEJB80M4，SFA37-YEJB90M4，SFA37-YP100M4，SFA37-YP63M4，SFA37-YP71M4，SFA37-YP80M4，SFA37-YP90M4，SFA37-YPB100M4，SFA37-YPB63M4，SFA37-YPB71M4，SFA37-YPB80M4，SFA37-YPB90M4，SFA37-YPE100M4，SFA37-YPE63M4，SFA37-YPE71M4，SFA37-YPE80M4，SFA37-YPE90M4，SFA37-YS100M4，SFA37-YS63M4，SFA37-YS71M4，SFA37-YS80M4，SFA37-YS90M4，SFA37-YVB100M4，SFA37-YVB63M4，SFA37-YVB71M4，SFA37-YVB80M4，SFA37-YVB90M4，SFA37-YVP100M4，SFA37-YVP63M4，SFA37-YVP71M4，SFA37-YVP80M4，SFA37-YVP90M4，SFA37-YVPEJ100M4，SFA37-YVPEJ63M4，SFA37-YVPEJ71M4，SFA37-YVPEJ80M4，SFA37-YVPEJ90M4，WFA37-Y0.12KW，WFA37-Y0.18KW，WFA37-Y0.25KW，WFA37-Y0.37KW，WFA37-Y0.55KW，WFA37-Y0.75KW，WFA37-Y1.1KW，WFA37-Y1.5KW，WFA37-Y100M4，WFA37-Y2.2KW，WFA37-Y3KW，WFA37-Y63M4，WFA37-Y71M4，WFA37-Y80M4，WFA37-Y90M4，WFA37-YB100M4，WFA37-YB63M4，WFA37-YB71M4，WFA37-YB80M4，WFA37-YB90M4，WFA37-YDP100M4，WFA37-YDP63M4，WFA37-YDP71M4，WFA37-YDP80M4，WFA37-YDP90M4，WFA37-YE100M4，WFA37-YE63M4，WFA37-YE71M4，WFA37-YE80M4，WFA37-YE90M4，WFA37-YEJ100M4，WFA37-YEJ63M4，WFA37-YEJ71M4，WFA37-YEJ80M4，WFA37-YEJ90M4，WFA37-YEJB100M4，WFA37-YEJB63M4，WFA37-YEJB71M4，WFA37-YEJB80M4，WFA37-YEJB90M4，WFA37-YP100M4，WFA37-YP63M4，WFA37-YP71M4，WFA37-YP80M4，WFA37-YP90M4，WFA37-YPB100M4，WFA37-YPB63M4，WFA37-YPB71M4，WFA37-YPB80M4，WFA37-YPB90M4，WFA37-YPE100M4，WFA37-YPE63M4，WFA37-YPE71M4，WFA37-YPE80M4，WFA37-YPE90M4，WFA37-YS100M4，WFA37-YS63M4，WFA37-YS71M4，WFA37-YS80M4，WFA37-YS90M4，WFA37-YVB100M4，WFA37-YVB63M4，WFA37-YVB71M4，WFA37-YVB80M4，WFA37-YVB90M4，WFA37-YVP100M4，WFA37-YVP63M4，WFA37-YVP71M4，WFA37-YVP80M4，WFA37-YVP90M4，WFA37-YVPEJ100M4，WFA37-YVPEJ63M4，WFA37-YVPEJ71M4，WFA37-YVPEJ80M4，WFA37-YVPEJ90M4，AFA37-Y0.12KW，AFA37-Y0.18KW，AFA37-Y0.25KW，AFA37-Y0.37KW，AFA37-Y0.55KW，AFA37-Y0.75KW，AFA37-Y1.1KW，AFA37-Y1.5KW，AFA37-Y100M4，AFA37-Y2.2KW，AFA37-Y3KW，AFA37-Y63M4，AFA37-Y71M4，AFA37-Y80M4，AFA37-Y90M4，AFA37-YB100M4，AFA37-YB63M4，AFA37-YB71M4，AFA37-YB80M4，AFA37-YB90M4，AFA37-YDP100M4，AFA37-YDP63M4，AFA37-YDP71M4，AFA37-YDP80M4，AFA37-YDP90M4，AFA37-YE100M4，AFA37-YE63M4，AFA37-YE71M4，AFA37-YE80M4，AFA37-YE90M4，AFA37-YEJ100M4，AFA37-YEJ63M4，AFA37-YEJ71M4，AFA37-YEJ80M4，AFA37-YEJ90M4，AFA37-YEJB100M4，AFA37-YEJB63M4，AFA37-YEJB71M4，AFA37-YEJB80M4，AFA37-YEJB90M4，AFA37-YP100M4，AFA37-YP63M4，AFA37-YP71M4，AFA37-YP80M4，AFA37-YP90M4，AFA37-YPB100M4，AFA37-YPB63M4，AFA37-YPB71M4，AFA37-YPB80M4，AFA37-YPB90M4，AFA37-YPE100M4，AFA37-YPE63M4，AFA37-YPE71M4，AFA37-YPE80M4，AFA37-YPE90M4，AFA37-YS100M4，AFA37-YS63M4，AFA37-YS71M4，AFA37-YS80M4，AFA37-YS90M4，AFA37-YVB100M4，AFA37-YVB63M4，AFA37-YVB71M4，AFA37-YVB80M4，AFA37-YVB90M4，AFA37-YVP100M4，AFA37-YVP63M4，AFA37-YVP71M4，AFA37-YVP80M4，AFA37-YVP90M4，AFA37-YVPEJ100M4，AFA37-YVPEJ63M4，AFA37-YVPEJ71M4，AFA37-YVPEJ80M4，AFA37-YVPEJ90M4，GFA39-Y0.12KW，GFA39-Y0.18KW，GFA39-Y0.25KW，GFA39-Y0.37KW，GFA39-Y0.55KW，GFA39-Y0.75KW，GFA39-Y1.1KW，GFA39-Y1.5KW，GFA39-Y100M4，GFA39-Y2.2KW，GFA39-Y3KW，GFA39-Y63M4，GFA39-Y71M4，GFA39-Y80M4，GFA39-Y90M4，GFA39-YB100M4，GFA39-YB63M4，GFA39-YB71M4，GFA39-YB80M4，GFA39-YB90M4，GFA39-YDP100M4，GFA39-YDP63M4，GFA39-YDP71M4，GFA39-YDP80M4，GFA39-YDP90M4，GFA39-YE100M4，GFA39-YE63M4，GFA39-YE71M4，GFA39-YE80M4，GFA39-YE90M4，GFA39-YEJ100M4，GFA39-YEJ63M4，GFA39-YEJ71M4，GFA39-YEJ80M4，GFA39-YEJ90M4，GFA39-YEJB100M4，GFA39-YEJB63M4，GFA39-YEJB71M4，GFA39-YEJB80M4，GFA39-YEJB90M4，GFA39-YP100M4，GFA39-YP63M4，GFA39-YP71M4，GFA39-YP80M4，GFA39-YP90M4，GFA39-YPB100M4，GFA39-YPB63M4，GFA39-YPB71M4，GFA39-YPB80M4，GFA39-YPB90M4，GFA39-YPE100M4，GFA39-YPE63M4，GFA39-YPE71M4，GFA39-YPE80M4，GFA39-YPE90M4，GFA39-YS100M4，GFA39-YS63M4，GFA39-YS71M4，GFA39-YS80M4，GFA39-YS90M4，GFA39-YVB100M4，GFA39-YVB63M4，GFA39-YVB71M4，GFA39-YVB80M4，GFA39-YVB90M4，GFA39-YVP100M4，GFA39-YVP63M4，GFA39-YVP71M4，GFA39-YVP80M4，GFA39-YVP90M4，GFA39-YVPEJ100M4，GFA39-YVPEJ63M4，GFA39-YVPEJ71M4，GFA39-YVPEJ80M4，GFA39-YVPEJ90M4。

FA39減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F39減速機
