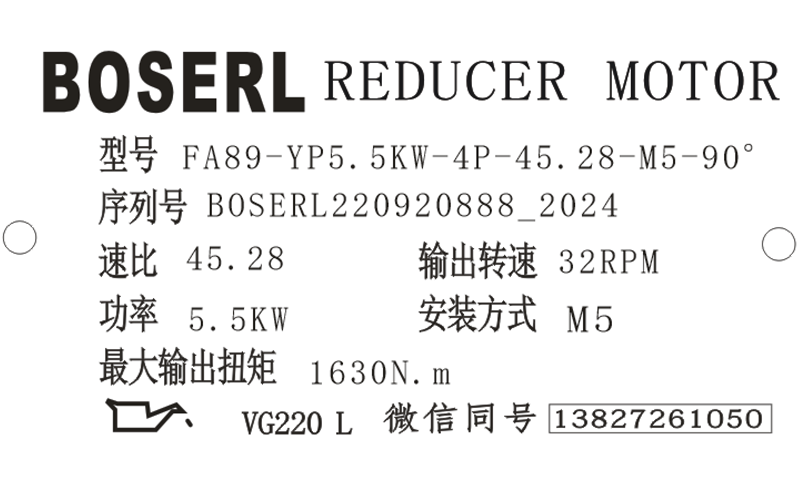

FA89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F89減速機選型樣本。

FA89-YP5.5KW-4P-45.28-M5-90°

FA：系列代號

89：減速機規格代號

YP：電機

5.5KW：電機功率

4P：電機級數

45.28：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

FA89減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA89減速機的扭力臂安裝示意圖：齒輪減速電機

FA89減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA89減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA89減速機型號：

AFA87-Y0.37KW，AFA87-Y0.55KW，AFA87-Y0.75KW，AFA87-Y1.1KW，AFA87-Y1.5KW，AFA87-Y100M4，AFA87-Y112M4，AFA87-Y11KW，AFA87-Y132M4，AFA87-Y15KW，AFA87-Y160M4，AFA87-Y18.5KW，AFA87-Y180M4，AFA87-Y2.2KW，AFA87-Y200M4，AFA87-Y22KW，AFA87-Y3KW，AFA87-Y4KW，AFA87-Y5.5KW，AFA87-Y7.5KW，AFA87-Y71M4，AFA87-Y80M4，AFA87-Y90M4，AFA87-YB100M4，AFA87-YB112M4，AFA87-YB132M4，AFA87-YB160M4，AFA87-YB180M4，AFA87-YB200M4，AFA87-YB71M4，AFA87-YB80M4，AFA87-YB90M4，AFA87-YDP100M4，AFA87-YDP112M4，AFA87-YDP132M4，AFA87-YDP160M4，AFA87-YDP180M4，AFA87-YDP200M4，AFA87-YDP71M4，AFA87-YDP80M4，AFA87-YDP90M4，AFA87-YE100M4，AFA87-YE112M4，AFA87-YE132M4，AFA87-YE160M4，AFA87-YE180M4，AFA87-YE200M4，AFA87-YE71M4，AFA87-YE80M4，AFA87-YE90M4，AFA87-YEJ100M4，AFA87-YEJ112M4，AFA87-YEJ132M4，AFA87-YEJ160M4，AFA87-YEJ180M4，AFA87-YEJ200M4，AFA87-YEJ71M4，AFA87-YEJ80M4，AFA87-YEJ90M4，AFA87-YEJB100M4，AFA87-YEJB112M4，AFA87-YEJB132M4，AFA87-YEJB160M4，AFA87-YEJB180M4，AFA87-YEJB200M4，AFA87-YEJB71M4，AFA87-YEJB80M4，AFA87-YEJB90M4，AFA87-YP100M4，AFA87-YP112M4，AFA87-YP132M4，AFA87-YP160M4，AFA87-YP180M4，AFA87-YP200M4，AFA87-YP71M4，AFA87-YP80M4，AFA87-YP90M4，AFA87-YPB100M4，AFA87-YPB112M4，AFA87-YPB132M4，AFA87-YPB160M4，AFA87-YPB180M4，AFA87-YPB200M4，AFA87-YPB71M4，AFA87-YPB80M4，AFA87-YPB90M4，AFA87-YPE100M4，AFA87-YPE112M4，AFA87-YPE132M4，AFA87-YPE160M4，AFA87-YPE180M4，AFA87-YPE200M4，AFA87-YPE71M4，AFA87-YPE80M4，AFA87-YPE90M4，AFA87-YS100M4，AFA87-YS112M4，AFA87-YS132M4，AFA87-YS160M4，AFA87-YS180M4，AFA87-YS200M4，AFA87-YS71M4，AFA87-YS80M4，AFA87-YS90M4，AFA87-YVB100M4，AFA87-YVB112M4，AFA87-YVB132M4，AFA87-YVB160M4，AFA87-YVB180M4，AFA87-YVB200M4，AFA87-YVB71M4，AFA87-YVB80M4，AFA87-YVB90M4，AFA87-YVP100M4，AFA87-YVP112M4，AFA87-YVP132M4，AFA87-YVP160M4，AFA87-YVP180M4，AFA87-YVP200M4，AFA87-YVP71M4，AFA87-YVP80M4，AFA87-YVP90M4，AFA87-YVPEJ100M4，AFA87-YVPEJ112M4，AFA87-YVPEJ132M4，AFA87-YVPEJ160M4，AFA87-YVPEJ180M4，AFA87-YVPEJ200M4，AFA87-YVPEJ71M4，AFA87-YVPEJ80M4，AFA87-YVPEJ90M4，WFA87-Y0.37KW，WFA87-Y0.55KW，WFA87-Y0.75KW，WFA87-Y1.1KW，WFA87-Y1.5KW，WFA87-Y100M4，WFA87-Y112M4，WFA87-Y11KW，WFA87-Y132M4，WFA87-Y15KW，WFA87-Y160M4，WFA87-Y18.5KW，WFA87-Y180M4，WFA87-Y2.2KW，WFA87-Y200M4，WFA87-Y22KW，WFA87-Y3KW，WFA87-Y4KW，WFA87-Y5.5KW，WFA87-Y7.5KW，WFA87-Y71M4，WFA87-Y80M4，WFA87-Y90M4，WFA87-YB100M4，WFA87-YB112M4，WFA87-YB132M4，WFA87-YB160M4，WFA87-YB180M4，WFA87-YB200M4，WFA87-YB71M4，WFA87-YB80M4，WFA87-YB90M4，WFA87-YDP100M4，WFA87-YDP112M4，WFA87-YDP132M4，WFA87-YDP160M4，WFA87-YDP180M4，WFA87-YDP200M4，WFA87-YDP71M4，WFA87-YDP80M4，WFA87-YDP90M4，WFA87-YE100M4，WFA87-YE112M4，WFA87-YE132M4，WFA87-YE160M4，WFA87-YE180M4，WFA87-YE200M4，WFA87-YE71M4，WFA87-YE80M4，WFA87-YE90M4，WFA87-YEJ100M4，WFA87-YEJ112M4，WFA87-YEJ132M4，WFA87-YEJ160M4，WFA87-YEJ180M4，WFA87-YEJ200M4，WFA87-YEJ71M4，WFA87-YEJ80M4，WFA87-YEJ90M4，WFA87-YEJB100M4，WFA87-YEJB112M4，WFA87-YEJB132M4，WFA87-YEJB160M4，WFA87-YEJB180M4，WFA87-YEJB200M4，WFA87-YEJB71M4，WFA87-YEJB80M4，WFA87-YEJB90M4，WFA87-YP100M4，WFA87-YP112M4，WFA87-YP132M4，WFA87-YP160M4，WFA87-YP180M4，WFA87-YP200M4，WFA87-YP71M4，WFA87-YP80M4，WFA87-YP90M4，WFA87-YPB100M4，WFA87-YPB112M4，WFA87-YPB132M4，WFA87-YPB160M4，WFA87-YPB180M4，WFA87-YPB200M4，WFA87-YPB71M4，WFA87-YPB80M4，WFA87-YPB90M4，WFA87-YPE100M4，WFA87-YPE112M4，WFA87-YPE132M4，WFA87-YPE160M4，WFA87-YPE180M4，WFA87-YPE200M4，WFA87-YPE71M4，WFA87-YPE80M4，WFA87-YPE90M4，WFA87-YS100M4，WFA87-YS112M4，WFA87-YS132M4，WFA87-YS160M4，WFA87-YS180M4，WFA87-YS200M4，WFA87-YS71M4，WFA87-YS80M4，WFA87-YS90M4，WFA87-YVB100M4，WFA87-YVB112M4，WFA87-YVB132M4，WFA87-YVB160M4，WFA87-YVB180M4，WFA87-YVB200M4，WFA87-YVB71M4，WFA87-YVB80M4，WFA87-YVB90M4，WFA87-YVP100M4，WFA87-YVP112M4，WFA87-YVP132M4，WFA87-YVP160M4，WFA87-YVP180M4，WFA87-YVP200M4，WFA87-YVP71M4，WFA87-YVP80M4，WFA87-YVP90M4，WFA87-YVPEJ100M4，WFA87-YVPEJ112M4，WFA87-YVPEJ132M4，WFA87-YVPEJ160M4，WFA87-YVPEJ180M4，WFA87-YVPEJ200M4，WFA87-YVPEJ71M4，WFA87-YVPEJ80M4，WFA87-YVPEJ90M4，NFA87-Y0.37KW，NFA87-Y0.55KW，NFA87-Y0.75KW，NFA87-Y1.1KW，NFA87-Y1.5KW，NFA87-Y100M4，NFA87-Y112M4，NFA87-Y11KW，NFA87-Y132M4，NFA87-Y15KW，NFA87-Y160M4，NFA87-Y18.5KW，NFA87-Y180M4，NFA87-Y2.2KW，NFA87-Y200M4，NFA87-Y22KW，NFA87-Y3KW，NFA87-Y4KW，NFA87-Y5.5KW，NFA87-Y7.5KW，NFA87-Y71M4，NFA87-Y80M4，NFA87-Y90M4，NFA87-YB100M4，NFA87-YB112M4，NFA87-YB132M4，NFA87-YB160M4，NFA87-YB180M4，NFA87-YB200M4，NFA87-YB71M4，NFA87-YB80M4，NFA87-YB90M4，NFA87-YDP100M4，NFA87-YDP112M4，NFA87-YDP132M4，NFA87-YDP160M4，NFA87-YDP180M4，NFA87-YDP200M4，NFA87-YDP71M4，NFA87-YDP80M4，NFA87-YDP90M4，NFA87-YE100M4，NFA87-YE112M4，NFA87-YE132M4，NFA87-YE160M4，NFA87-YE180M4，NFA87-YE200M4，NFA87-YE71M4，NFA87-YE80M4，NFA87-YE90M4，NFA87-YEJ100M4，NFA87-YEJ112M4，NFA87-YEJ132M4，NFA87-YEJ160M4，NFA87-YEJ180M4，NFA87-YEJ200M4，NFA87-YEJ71M4，NFA87-YEJ80M4，NFA87-YEJ90M4，NFA87-YEJB100M4，NFA87-YEJB112M4，NFA87-YEJB132M4，NFA87-YEJB160M4，NFA87-YEJB180M4，NFA87-YEJB200M4，NFA87-YEJB71M4，NFA87-YEJB80M4，NFA87-YEJB90M4，NFA87-YP100M4，NFA87-YP112M4，NFA87-YP132M4，NFA87-YP160M4，NFA87-YP180M4，NFA87-YP200M4，NFA87-YP71M4，NFA87-YP80M4，NFA87-YP90M4，NFA87-YPB100M4，NFA87-YPB112M4，NFA87-YPB132M4，NFA87-YPB160M4，NFA87-YPB180M4，NFA87-YPB200M4，NFA87-YPB71M4，NFA87-YPB80M4，NFA87-YPB90M4，NFA87-YPE100M4，NFA87-YPE112M4，NFA87-YPE132M4，NFA87-YPE160M4，NFA87-YPE180M4，NFA87-YPE200M4，NFA87-YPE71M4，NFA87-YPE80M4，NFA87-YPE90M4，NFA87-YS100M4，NFA87-YS112M4，NFA87-YS132M4，NFA87-YS160M4，NFA87-YS180M4，NFA87-YS200M4，NFA87-YS71M4，NFA87-YS80M4，NFA87-YS90M4，NFA87-YVB100M4，NFA87-YVB112M4，NFA87-YVB132M4，NFA87-YVB160M4，NFA87-YVB180M4，NFA87-YVB200M4，NFA87-YVB71M4，NFA87-YVB80M4，NFA87-YVB90M4，NFA87-YVP100M4，NFA87-YVP112M4，NFA87-YVP132M4，NFA87-YVP160M4，NFA87-YVP180M4，NFA87-YVP200M4，NFA87-YVP71M4，NFA87-YVP80M4，NFA87-YVP90M4，NFA87-YVPEJ100M4，NFA87-YVPEJ112M4，NFA87-YVPEJ132M4，NFA87-YVPEJ160M4，NFA87-YVPEJ180M4，NFA87-YVPEJ200M4，NFA87-YVPEJ71M4，NFA87-YVPEJ80M4，NFA87-YVPEJ90M4，SFA87-Y0.37KW，SFA87-Y0.55KW，SFA87-Y0.75KW，SFA87-Y1.1KW，SFA87-Y1.5KW，SFA87-Y100M4，SFA87-Y112M4，SFA87-Y11KW，SFA87-Y132M4，SFA87-Y15KW，SFA87-Y160M4，SFA87-Y18.5KW，SFA87-Y180M4，SFA87-Y2.2KW，SFA87-Y200M4，SFA87-Y22KW，SFA87-Y3KW，SFA87-Y4KW，SFA87-Y5.5KW，SFA87-Y7.5KW，SFA87-Y71M4，SFA87-Y80M4，SFA87-Y90M4，SFA87-YB100M4，SFA87-YB112M4，SFA87-YB132M4，SFA87-YB160M4，SFA87-YB180M4，SFA87-YB200M4，SFA87-YB71M4，SFA87-YB80M4，SFA87-YB90M4，SFA87-YDP100M4，SFA87-YDP112M4，SFA87-YDP132M4，SFA87-YDP160M4，SFA87-YDP180M4，SFA87-YDP200M4，SFA87-YDP71M4，SFA87-YDP80M4，SFA87-YDP90M4，SFA87-YE100M4，SFA87-YE112M4，SFA87-YE132M4，SFA87-YE160M4，SFA87-YE180M4，SFA87-YE200M4，SFA87-YE71M4，SFA87-YE80M4，SFA87-YE90M4，SFA87-YEJ100M4，SFA87-YEJ112M4，SFA87-YEJ132M4，SFA87-YEJ160M4，SFA87-YEJ180M4，SFA87-YEJ200M4，SFA87-YEJ71M4，SFA87-YEJ80M4，SFA87-YEJ90M4，SFA87-YEJB100M4，SFA87-YEJB112M4，SFA87-YEJB132M4，SFA87-YEJB160M4，SFA87-YEJB180M4，SFA87-YEJB200M4，SFA87-YEJB71M4，SFA87-YEJB80M4，SFA87-YEJB90M4，SFA87-YP100M4，SFA87-YP112M4，SFA87-YP132M4，SFA87-YP160M4，SFA87-YP180M4，SFA87-YP200M4，SFA87-YP71M4，SFA87-YP80M4，SFA87-YP90M4，SFA87-YPB100M4，SFA87-YPB112M4，SFA87-YPB132M4，SFA87-YPB160M4，SFA87-YPB180M4，SFA87-YPB200M4，SFA87-YPB71M4，SFA87-YPB80M4，SFA87-YPB90M4，SFA87-YPE100M4，SFA87-YPE112M4，SFA87-YPE132M4，SFA87-YPE160M4，SFA87-YPE180M4，SFA87-YPE200M4，SFA87-YPE71M4，SFA87-YPE80M4，SFA87-YPE90M4，SFA87-YS100M4，SFA87-YS112M4，SFA87-YS132M4，SFA87-YS160M4，SFA87-YS180M4，SFA87-YS200M4，SFA87-YS71M4，SFA87-YS80M4，SFA87-YS90M4，SFA87-YVB100M4，SFA87-YVB112M4，SFA87-YVB132M4，SFA87-YVB160M4，SFA87-YVB180M4，SFA87-YVB200M4，SFA87-YVB71M4，SFA87-YVB80M4，SFA87-YVB90M4，SFA87-YVP100M4，SFA87-YVP112M4，SFA87-YVP132M4，SFA87-YVP160M4，SFA87-YVP180M4，SFA87-YVP200M4，SFA87-YVP71M4，SFA87-YVP80M4，SFA87-YVP90M4，SFA87-YVPEJ100M4，SFA87-YVPEJ112M4，SFA87-YVPEJ132M4，SFA87-YVPEJ160M4，SFA87-YVPEJ180M4，SFA87-YVPEJ200M4，SFA87-YVPEJ71M4，SFA87-YVPEJ80M4，SFA87-YVPEJ90M4，GFA89-Y0.37KW，GFA89-Y0.55KW，GFA89-Y0.75KW，GFA89-Y1.1KW，GFA89-Y1.5KW，GFA89-Y100M4，GFA89-Y112M4，GFA89-Y11KW，GFA89-Y132M4，GFA89-Y15KW，GFA89-Y160M4，GFA89-Y18.5KW，GFA89-Y180M4，GFA89-Y2.2KW，GFA89-Y200M4，GFA89-Y22KW，GFA89-Y3KW，GFA89-Y4KW，GFA89-Y5.5KW，GFA89-Y7.5KW，GFA89-Y71M4，GFA89-Y80M4，GFA89-Y90M4，GFA89-YB100M4，GFA89-YB112M4，GFA89-YB132M4，GFA89-YB160M4，GFA89-YB180M4，GFA89-YB200M4，GFA89-YB71M4，GFA89-YB80M4，GFA89-YB90M4，GFA89-YDP100M4，GFA89-YDP112M4，GFA89-YDP132M4，GFA89-YDP160M4，GFA89-YDP180M4，GFA89-YDP200M4，GFA89-YDP71M4，GFA89-YDP80M4，GFA89-YDP90M4，GFA89-YE100M4，GFA89-YE112M4，GFA89-YE132M4，GFA89-YE160M4，GFA89-YE180M4，GFA89-YE200M4，GFA89-YE71M4，GFA89-YE80M4，GFA89-YE90M4，GFA89-YEJ100M4，GFA89-YEJ112M4，GFA89-YEJ132M4，GFA89-YEJ160M4，GFA89-YEJ180M4，GFA89-YEJ200M4，GFA89-YEJ71M4，GFA89-YEJ80M4，GFA89-YEJ90M4，GFA89-YEJB100M4，GFA89-YEJB112M4，GFA89-YEJB132M4，GFA89-YEJB160M4，GFA89-YEJB180M4，GFA89-YEJB200M4，GFA89-YEJB71M4，GFA89-YEJB80M4，GFA89-YEJB90M4，GFA89-YP100M4，GFA89-YP112M4，GFA89-YP132M4，GFA89-YP160M4，GFA89-YP180M4，GFA89-YP200M4，GFA89-YP71M4，GFA89-YP80M4，GFA89-YP90M4，GFA89-YPB100M4，GFA89-YPB112M4，GFA89-YPB132M4，GFA89-YPB160M4，GFA89-YPB180M4，GFA89-YPB200M4，GFA89-YPB71M4，GFA89-YPB80M4，GFA89-YPB90M4，GFA89-YPE100M4，GFA89-YPE112M4，GFA89-YPE132M4，GFA89-YPE160M4，GFA89-YPE180M4，GFA89-YPE200M4，GFA89-YPE71M4，GFA89-YPE80M4，GFA89-YPE90M4，GFA89-YS100M4，GFA89-YS112M4，GFA89-YS132M4，GFA89-YS160M4，GFA89-YS180M4，GFA89-YS200M4，GFA89-YS71M4，GFA89-YS80M4，GFA89-YS90M4，GFA89-YVB100M4，GFA89-YVB112M4，GFA89-YVB132M4，GFA89-YVB160M4，GFA89-YVB180M4，GFA89-YVB200M4，GFA89-YVB71M4，GFA89-YVB80M4，GFA89-YVB90M4，GFA89-YVP100M4，GFA89-YVP112M4，GFA89-YVP132M4，GFA89-YVP160M4，GFA89-YVP180M4，GFA89-YVP200M4，GFA89-YVP71M4，GFA89-YVP80M4，GFA89-YVP90M4，GFA89-YVPEJ100M4，GFA89-YVPEJ112M4，GFA89-YVPEJ132M4，GFA89-YVPEJ160M4，GFA89-YVPEJ180M4，GFA89-YVPEJ200M4，GFA89-YVPEJ71M4，GFA89-YVPEJ80M4，GFA89-YVPEJ90M4。

FA89減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F89減速機
