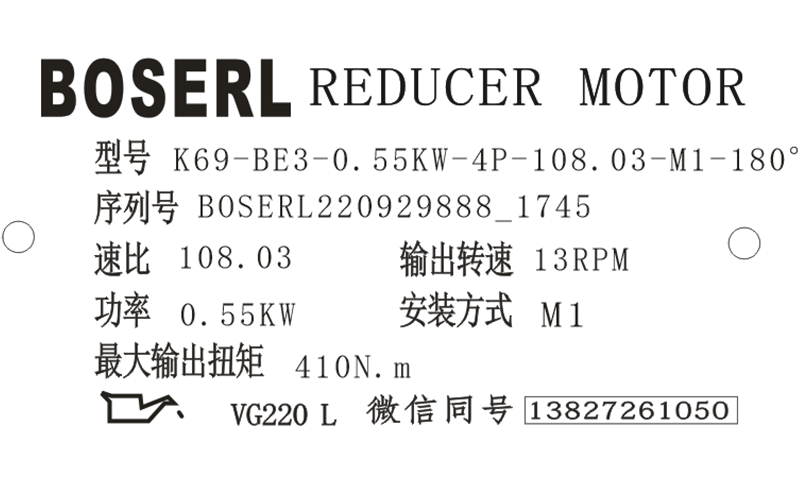

K69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K69減速器選型樣本。

K69-BE3-0.55KW-4P-108.03-M1-180°

K：系列代號

69：減速機規格代號

BE3：電機

0.55KW：電機功率

4P：電機級數

108.03：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

K69減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K69減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K69減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K69減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K69減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K69減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K69減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K69減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K69減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K69減速器故障售后服務統籌：

K69減速器潤滑油泄露：K69減速器密封面密封性能不良，擰緊K69減速器蓋上的螺釘并觀察K69減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K69減速器透氣閥失效，給K69減速器透氣參見“K69減速器說明書的安裝位置”章節。齒輪減速電機

K69減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K69減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K69減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K69減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K69減速器說明書的檢查/維護”章節；K69減速器安裝位置錯誤，正確安裝透氣閥參見“K69減速器說明書的安裝位置”章節，調節油位參見“K69減速器說明書的檢查/維護”章節。

K69減速器電機或輸入軸轉動，而輸出軸不轉：K69減速器中的軸輪轂聯接斷裂，將K69減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K69減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K69減速器型號：

XDK67-Y0.18KW，XDK67-Y0.25KW，XDK67-Y0.37KW，XDK67-Y0.55KW，XDK67-Y0.75KW，XDK67-Y1.1KW，XDK67-Y1.5KW，XDK67-Y100M4，XDK67-Y112M4，XDK67-Y2.2KW，XDK67-Y3KW，XDK67-Y4KW，XDK67-Y5.5KW，XDK67-Y63M4，XDK67-Y71M4，XDK67-Y80M4，XDK67-Y90M4，XDK67-YB100M4，XDK67-YB112M4，XDK67-YB132M4，XDK67-YB63M4，XDK67-YB71M4，XDK67-YB80M4，XDK67-YB90M4，XDK67-YDP100M4，XDK67-YDP112M4，XDK67-YDP132M4，XDK67-YDP63M4，XDK67-YDP71M4，XDK67-YDP80M4，XDK67-YDP90M4，XDK67-YE100M4，XDK67-YE112M4，XDK67-YE132M4，XDK67-YE63M4，XDK67-YE71M4，XDK67-YE80M4，XDK67-YE90M4，XDK67-YEJ100M4，XDK67-YEJ112M4，XDK67-YEJ132M4，XDK67-YEJ63M4，XDK67-YEJ71M4，XDK67-YEJ80M4，XDK67-YEJ90M4，XDK67-YEJB100M4，XDK67-YEJB112M4，XDK67-YEJB132M4，XDK67-YEJB63M4，XDK67-YEJB71M4，XDK67-YEJB80M4，XDK67-YEJB90M4，XDK67-YP100M4，XDK67-YP112M4，XDK67-YP132M4，XDK67-YP63M4，XDK67-YP71M4，XDK67-YP80M4，XDK67-YP90M4，XDK67-YPB100M4，XDK67-YPB112M4，XDK67-YPB132M4，XDK67-YPB63M4，XDK67-YPB71M4，XDK67-YPB80M4，XDK67-YPB90M4，XDK67-YPE100M4，XDK67-YPE112M4，XDK67-YPE132M4，XDK67-YPE63M4，XDK67-YPE71M4，XDK67-YPE80M4，XDK67-YPE90M4，XDK67-YS100M4，XDK67-YS112M4，XDK67-YS132M4，XDK67-YS63M4，XDK67-YS71M4，XDK67-YS80M4，XDK67-YS90M4，XDK67-YVB100M4，XDK67-YVB112M4，XDK67-YVB132M4，XDK67-YVB63M4，XDK67-YVB71M4，XDK67-YVB80M4，XDK67-YVB90M4，XDK67-YVP100M4，XDK67-YVP112M4，XDK67-YVP132M4，XDK67-YVP63M4，XDK67-YVP71M4，XDK67-YVP80M4，XDK67-YVP90M4，XDK67-YVPEJ100M4，XDK67-YVPEJ112M4，XDK67-YVPEJ132M4，XDK67-YVPEJ63M4，XDK67-YVPEJ71M4，XDK67-YVPEJ80M4，XDK67-YVPEJ90M4，JCK67-Y0.18KW，JCK67-Y0.25KW，JCK67-Y0.37KW，JCK67-Y0.55KW，JCK67-Y0.75KW，JCK67-Y1.1KW，JCK67-Y1.5KW，JCK67-Y100M4，JCK67-Y112M4，JCK67-Y2.2KW，JCK67-Y3KW，JCK67-Y4KW，JCK67-Y5.5KW，JCK67-Y63M4，JCK67-Y71M4，JCK67-Y80M4，JCK67-Y90M4，JCK67-YB100M4，JCK67-YB112M4，JCK67-YB132M4，JCK67-YB63M4，JCK67-YB71M4，JCK67-YB80M4，JCK67-YB90M4，JCK67-YDP100M4，JCK67-YDP112M4，JCK67-YDP132M4，JCK67-YDP63M4，JCK67-YDP71M4，JCK67-YDP80M4，JCK67-YDP90M4，JCK67-YE100M4，JCK67-YE112M4，JCK67-YE132M4，JCK67-YE63M4，JCK67-YE71M4，JCK67-YE80M4，JCK67-YE90M4，JCK67-YEJ100M4，JCK67-YEJ112M4，JCK67-YEJ132M4，JCK67-YEJ63M4，JCK67-YEJ71M4，JCK67-YEJ80M4，JCK67-YEJ90M4，JCK67-YEJB100M4，JCK67-YEJB112M4，JCK67-YEJB132M4，JCK67-YEJB63M4，JCK67-YEJB71M4，JCK67-YEJB80M4，JCK67-YEJB90M4，JCK67-YP100M4，JCK67-YP112M4，JCK67-YP132M4，JCK67-YP63M4，JCK67-YP71M4，JCK67-YP80M4，JCK67-YP90M4，JCK67-YPB100M4，JCK67-YPB112M4，JCK67-YPB132M4，JCK67-YPB63M4，JCK67-YPB71M4，JCK67-YPB80M4，JCK67-YPB90M4，JCK67-YPE100M4，JCK67-YPE112M4，JCK67-YPE132M4，JCK67-YPE63M4，JCK67-YPE71M4，JCK67-YPE80M4，JCK67-YPE90M4，JCK67-YS100M4，JCK67-YS112M4，JCK67-YS132M4，JCK67-YS63M4，JCK67-YS71M4，JCK67-YS80M4，JCK67-YS90M4，JCK67-YVB100M4，JCK67-YVB112M4，JCK67-YVB132M4，JCK67-YVB63M4，JCK67-YVB71M4，JCK67-YVB80M4，JCK67-YVB90M4，JCK67-YVP100M4，JCK67-YVP112M4，JCK67-YVP132M4，JCK67-YVP63M4，JCK67-YVP71M4，JCK67-YVP80M4，JCK67-YVP90M4，JCK67-YVPEJ100M4，JCK67-YVPEJ112M4，JCK67-YVPEJ132M4，JCK67-YVPEJ63M4，JCK67-YVPEJ71M4，JCK67-YVPEJ80M4，JCK67-YVPEJ90M4，YQK67-Y0.18KW，YQK67-Y0.25KW，YQK67-Y0.37KW，YQK67-Y0.55KW，YQK67-Y0.75KW，YQK67-Y1.1KW，YQK67-Y1.5KW，YQK67-Y100M4，YQK67-Y112M4，YQK67-Y2.2KW，YQK67-Y3KW，YQK67-Y4KW，YQK67-Y5.5KW，YQK67-Y63M4，YQK67-Y71M4，YQK67-Y80M4，YQK67-Y90M4，YQK67-YB100M4，YQK67-YB112M4，YQK67-YB132M4，YQK67-YB63M4，YQK67-YB71M4，YQK67-YB80M4，YQK67-YB90M4，YQK67-YDP100M4，YQK67-YDP112M4，YQK67-YDP132M4，YQK67-YDP63M4，YQK67-YDP71M4，YQK67-YDP80M4，YQK67-YDP90M4，YQK67-YE100M4，YQK67-YE112M4，YQK67-YE132M4，YQK67-YE63M4，YQK67-YE71M4，YQK67-YE80M4，YQK67-YE90M4，YQK67-YEJ100M4，YQK67-YEJ112M4，YQK67-YEJ132M4，YQK67-YEJ63M4，YQK67-YEJ71M4，YQK67-YEJ80M4，YQK67-YEJ90M4，YQK67-YEJB100M4，YQK67-YEJB112M4，YQK67-YEJB132M4，YQK67-YEJB63M4，YQK67-YEJB71M4，YQK67-YEJB80M4，YQK67-YEJB90M4，YQK67-YP100M4，YQK67-YP112M4，YQK67-YP132M4，YQK67-YP63M4，YQK67-YP71M4，YQK67-YP80M4，YQK67-YP90M4，YQK67-YPB100M4，YQK67-YPB112M4，YQK67-YPB132M4，YQK67-YPB63M4，YQK67-YPB71M4，YQK67-YPB80M4，YQK67-YPB90M4，YQK67-YPE100M4，YQK67-YPE112M4，YQK67-YPE132M4，YQK67-YPE63M4，YQK67-YPE71M4，YQK67-YPE80M4，YQK67-YPE90M4，YQK67-YS100M4，YQK67-YS112M4，YQK67-YS132M4，YQK67-YS63M4，YQK67-YS71M4，YQK67-YS80M4，YQK67-YS90M4，YQK67-YVB100M4，YQK67-YVB112M4，YQK67-YVB132M4，YQK67-YVB63M4，YQK67-YVB71M4，YQK67-YVB80M4，YQK67-YVB90M4，YQK67-YVP100M4，YQK67-YVP112M4，YQK67-YVP132M4，YQK67-YVP63M4，YQK67-YVP71M4，YQK67-YVP80M4，YQK67-YVP90M4，YQK67-YVPEJ100M4，YQK67-YVPEJ112M4，YQK67-YVPEJ132M4，YQK67-YVPEJ63M4，YQK67-YVPEJ71M4，YQK67-YVPEJ80M4，YQK67-YVPEJ90M4，KW67-Y0.18KW，KW67-Y0.25KW，KW67-Y0.37KW，KW67-Y0.55KW，KW67-Y0.75KW，KW67-Y1.1KW，KW67-Y1.5KW，KW67-Y100M4，KW67-Y112M4，KW67-Y2.2KW，KW67-Y3KW，KW67-Y4KW，KW67-Y5.5KW，KW67-Y63M4，KW67-Y71M4，KW67-Y80M4，KW67-Y90M4，KW67-YB100M4，KW67-YB112M4，KW67-YB132M4，KW67-YB63M4，KW67-YB71M4，KW67-YB80M4，KW67-YB90M4，KW67-YDP100M4，KW67-YDP112M4，KW67-YDP132M4，KW67-YDP63M4，KW67-YDP71M4，KW67-YDP80M4，KW67-YDP90M4，KW67-YE100M4，KW67-YE112M4，KW67-YE132M4，KW67-YE63M4，KW67-YE71M4，KW67-YE80M4，KW67-YE90M4，KW67-YEJ100M4，KW67-YEJ112M4，KW67-YEJ132M4，KW67-YEJ63M4，KW67-YEJ71M4，KW67-YEJ80M4，KW67-YEJ90M4，KW67-YEJB100M4，KW67-YEJB112M4，KW67-YEJB132M4，KW67-YEJB63M4，KW67-YEJB71M4，KW67-YEJB80M4，KW67-YEJB90M4，KW67-YP100M4，KW67-YP112M4，KW67-YP132M4，KW67-YP63M4，KW67-YP71M4，KW67-YP80M4，KW67-YP90M4，KW67-YPB100M4，KW67-YPB112M4，KW67-YPB132M4，KW67-YPB63M4，KW67-YPB71M4，KW67-YPB80M4，KW67-YPB90M4，KW67-YPE100M4，KW67-YPE112M4，KW67-YPE132M4，KW67-YPE63M4，KW67-YPE71M4，KW67-YPE80M4，KW67-YPE90M4，KW67-YS100M4，KW67-YS112M4，KW67-YS132M4，KW67-YS63M4，KW67-YS71M4，KW67-YS80M4，KW67-YS90M4，KW67-YVB100M4，KW67-YVB112M4，KW67-YVB132M4，KW67-YVB63M4，KW67-YVB71M4，KW67-YVB80M4，KW67-YVB90M4，KW67-YVP100M4，KW67-YVP112M4，KW67-YVP132M4，KW67-YVP63M4，KW67-YVP71M4，KW67-YVP80M4，KW67-YVP90M4，KW67-YVPEJ100M4，KW67-YVPEJ112M4，KW67-YVPEJ132M4，KW67-YVPEJ63M4，KW67-YVPEJ71M4，KW67-YVPEJ80M4，KW67-YVPEJ90M4，K69-Y0.18KW，K69-Y0.25KW，K69-Y0.37KW，K69-Y0.55KW，K69-Y0.75KW，K69-Y1.1KW，K69-Y1.5KW，K69-Y100M4，K69-Y112M4，K69-Y2.2KW，K69-Y3KW，K69-Y4KW，K69-Y5.5KW，K69-Y63M4，K69-Y71M4，K69-Y80M4，K69-Y90M4，K69-YB100M4，K69-YB112M4，K69-YB132M4，K69-YB63M4，K69-YB71M4，K69-YB80M4，K69-YB90M4，K69-YDP100M4，K69-YDP112M4，K69-YDP132M4，K69-YDP63M4，K69-YDP71M4，K69-YDP80M4，K69-YDP90M4，K69-YE100M4，K69-YE112M4，K69-YE132M4，K69-YE63M4，K69-YE71M4，K69-YE80M4，K69-YE90M4，K69-YEJ100M4，K69-YEJ112M4，K69-YEJ132M4，K69-YEJ63M4，K69-YEJ71M4，K69-YEJ80M4，K69-YEJ90M4，K69-YEJB100M4，K69-YEJB112M4，K69-YEJB132M4，K69-YEJB63M4，K69-YEJB71M4，K69-YEJB80M4，K69-YEJB90M4，K69-YP100M4，K69-YP112M4，K69-YP132M4，K69-YP63M4，K69-YP71M4，K69-YP80M4，K69-YP90M4，K69-YPB100M4，K69-YPB112M4，K69-YPB132M4，K69-YPB63M4，K69-YPB71M4，K69-YPB80M4，K69-YPB90M4，K69-YPE100M4，K69-YPE112M4，K69-YPE132M4，K69-YPE63M4，K69-YPE71M4，K69-YPE80M4，K69-YPE90M4，K69-YS100M4，K69-YS112M4，K69-YS132M4，K69-YS63M4，K69-YS71M4，K69-YS80M4，K69-YS90M4，K69-YVB100M4，K69-YVB112M4，K69-YVB132M4，K69-YVB63M4，K69-YVB71M4，K69-YVB80M4，K69-YVB90M4，K69-YVP100M4，K69-YVP112M4，K69-YVP132M4，K69-YVP63M4，K69-YVP71M4，K69-YVP80M4，K69-YVP90M4，K69-YVPEJ100M4，K69-YVPEJ112M4，K69-YVPEJ132M4，K69-YVPEJ63M4，K69-YVPEJ71M4，K69-YVPEJ80M4，K69-YVPEJ90M4，K67SF80，K67SF90，K67SF100，K67SF112，K67SF115，K67SF140，K67SF160，K67SF190。
