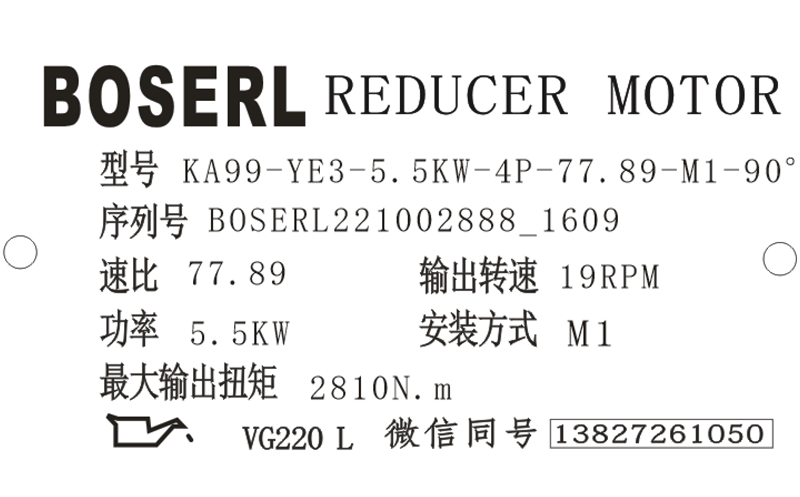

KA99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA99減速機選型樣本。

KA99-YE3-5.5KW-4P-77.89-M1-90°

KA：系列代號

99：減速機規格代號

YE3：電機

5.5KW：電機功率

4P：電機級數

77.89：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

KA99減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA99減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA99減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA99減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA99減速機型號：

WKA97-Y1.1SKA，WKA97-Y1.5SKA，WKA97-Y100M4，WKA97-Y112M4，WKA97-Y11SKA，WKA97-Y132M4，WKA97-Y15SKA，WKA97-Y160M4，WKA97-Y18.5SKA，WKA97-Y180M4，WKA97-Y2.2SKA，WKA97-Y200M4，WKA97-Y22SKA，WKA97-Y30SKA，WKA97-Y3SKA，WKA97-Y4SKA，WKA97-Y5.5SKA，WKA97-Y7.5SKA，WKA97-Y80M4，WKA97-Y90M4，WKA97-YB100M4，WKA97-YB112M4，WKA97-YB132M4，WKA97-YB160M4，WKA97-YB180M4，WKA97-YB200M4，WKA97-YB80M4，WKA97-YB90M4，WKA97-YDP100M4，WKA97-YDP112M4，WKA97-YDP132M4，WKA97-YDP160M4，WKA97-YDP180M4，WKA97-YDP200M4，WKA97-YDP80M4，WKA97-YDP90M4，WKA97-YE100M4，WKA97-YE112M4，WKA97-YE132M4，WKA97-YE160M4，WKA97-YE180M4，WKA97-YE200M4，WKA97-YE80M4，WKA97-YE90M4，WKA97-YEJ100M4，WKA97-YEJ112M4，WKA97-YEJ132M4，WKA97-YEJ160M4，WKA97-YEJ180M4，WKA97-YEJ200M4，WKA97-YEJ80M4，WKA97-YEJ90M4，WKA97-YEJB100M4，WKA97-YEJB112M4，WKA97-YEJB132M4，WKA97-YEJB160M4，WKA97-YEJB180M4，WKA97-YEJB200M4，WKA97-YEJB80M4，WKA97-YEJB90M4，WKA97-YP100M4，WKA97-YP112M4，WKA97-YP132M4，WKA97-YP160M4，WKA97-YP180M4，WKA97-YP200M4，WKA97-YP80M4，WKA97-YP90M4，WKA97-YPB100M4，WKA97-YPB112M4，WKA97-YPB132M4，WKA97-YPB160M4，WKA97-YPB180M4，WKA97-YPB200M4，WKA97-YPB80M4，WKA97-YPB90M4，WKA97-YPE100M4，WKA97-YPE112M4，WKA97-YPE132M4，WKA97-YPE160M4，WKA97-YPE180M4，WKA97-YPE200M4，WKA97-YPE80M4，WKA97-YPE90M4，WKA97-YS100M4，WKA97-YS112M4，WKA97-YS132M4，WKA97-YS160M4，WKA97-YS180M4，WKA97-YS200M4，WKA97-YS80M4，WKA97-YS90M4，WKA97-YVB100M4，WKA97-YVB112M4，WKA97-YVB132M4，WKA97-YVB160M4，WKA97-YVB180M4，WKA97-YVB200M4，WKA97-YVB80M4，WKA97-YVB90M4，WKA97-YVP100M4，WKA97-YVP112M4，WKA97-YVP132M4，WKA97-YVP160M4，WKA97-YVP180M4，WKA97-YVP200M4，WKA97-YVP80M4，WKA97-YVP90M4，WKA97-YVPEJ100M4，WKA97-YVPEJ112M4，WKA97-YVPEJ132M4，WKA97-YVPEJ160M4，WKA97-YVPEJ180M4，WKA97-YVPEJ200M4，WKA97-YVPEJ80M4，WKA97-YVPEJ90M4，SKA97-Y1.1SKA，SKA97-Y1.5SKA，SKA97-Y100M4，SKA97-Y112M4，SKA97-Y11SKA，SKA97-Y132M4，SKA97-Y15SKA，SKA97-Y160M4，SKA97-Y18.5SKA，SKA97-Y180M4，SKA97-Y2.2SKA，SKA97-Y200M4，SKA97-Y22SKA，SKA97-Y30SKA，SKA97-Y3SKA，SKA97-Y4SKA，SKA97-Y5.5SKA，SKA97-Y7.5SKA，SKA97-Y80M4，SKA97-Y90M4，SKA97-YB100M4，SKA97-YB112M4，SKA97-YB132M4，SKA97-YB160M4，SKA97-YB180M4，SKA97-YB200M4，SKA97-YB80M4，SKA97-YB90M4，SKA97-YDP100M4，SKA97-YDP112M4，SKA97-YDP132M4，SKA97-YDP160M4，SKA97-YDP180M4，SKA97-YDP200M4，SKA97-YDP80M4，SKA97-YDP90M4，SKA97-YE100M4，SKA97-YE112M4，SKA97-YE132M4，SKA97-YE160M4，SKA97-YE180M4，SKA97-YE200M4，SKA97-YE80M4，SKA97-YE90M4，SKA97-YEJ100M4，SKA97-YEJ112M4，SKA97-YEJ132M4，SKA97-YEJ160M4，SKA97-YEJ180M4，SKA97-YEJ200M4，SKA97-YEJ80M4，SKA97-YEJ90M4，SKA97-YEJB100M4，SKA97-YEJB112M4，SKA97-YEJB132M4，SKA97-YEJB160M4，SKA97-YEJB180M4，SKA97-YEJB200M4，SKA97-YEJB80M4，SKA97-YEJB90M4，SKA97-YP100M4，SKA97-YP112M4，SKA97-YP132M4，SKA97-YP160M4，SKA97-YP180M4，SKA97-YP200M4，SKA97-YP80M4，SKA97-YP90M4，SKA97-YPB100M4，SKA97-YPB112M4，SKA97-YPB132M4，SKA97-YPB160M4，SKA97-YPB180M4，SKA97-YPB200M4，SKA97-YPB80M4，SKA97-YPB90M4，SKA97-YPE100M4，SKA97-YPE112M4，SKA97-YPE132M4，SKA97-YPE160M4，SKA97-YPE180M4，SKA97-YPE200M4，SKA97-YPE80M4，SKA97-YPE90M4，SKA97-YS100M4，SKA97-YS112M4，SKA97-YS132M4，SKA97-YS160M4，SKA97-YS180M4，SKA97-YS200M4，SKA97-YS80M4，SKA97-YS90M4，SKA97-YVB100M4，SKA97-YVB112M4，SKA97-YVB132M4，SKA97-YVB160M4，SKA97-YVB180M4，SKA97-YVB200M4，SKA97-YVB80M4，SKA97-YVB90M4，SKA97-YVP100M4，SKA97-YVP112M4，SKA97-YVP132M4，SKA97-YVP160M4，SKA97-YVP180M4，SKA97-YVP200M4，SKA97-YVP80M4，SKA97-YVP90M4，SKA97-YVPEJ100M4，SKA97-YVPEJ112M4，SKA97-YVPEJ132M4，SKA97-YVPEJ160M4，SKA97-YVPEJ180M4，SKA97-YVPEJ200M4，SKA97-YVPEJ80M4，SKA97-YVPEJ90M4，AKA97-Y1.1SKA，AKA97-Y1.5SKA，AKA97-Y100M4，AKA97-Y112M4，AKA97-Y11SKA，AKA97-Y132M4，AKA97-Y15SKA，AKA97-Y160M4，AKA97-Y18.5SKA，AKA97-Y180M4，AKA97-Y2.2SKA，AKA97-Y200M4，AKA97-Y22SKA，AKA97-Y30SKA，AKA97-Y3SKA，AKA97-Y4SKA，AKA97-Y5.5SKA，AKA97-Y7.5SKA，AKA97-Y80M4，AKA97-Y90M4，AKA97-YB100M4，AKA97-YB112M4，AKA97-YB132M4，AKA97-YB160M4，AKA97-YB180M4，AKA97-YB200M4，AKA97-YB80M4，AKA97-YB90M4，AKA97-YDP100M4，AKA97-YDP112M4，AKA97-YDP132M4，AKA97-YDP160M4，AKA97-YDP180M4，AKA97-YDP200M4，AKA97-YDP80M4，AKA97-YDP90M4，AKA97-YE100M4，AKA97-YE112M4，AKA97-YE132M4，AKA97-YE160M4，AKA97-YE180M4，AKA97-YE200M4，AKA97-YE80M4，AKA97-YE90M4，AKA97-YEJ100M4，AKA97-YEJ112M4，AKA97-YEJ132M4，AKA97-YEJ160M4，AKA97-YEJ180M4，AKA97-YEJ200M4，AKA97-YEJ80M4，AKA97-YEJ90M4，AKA97-YEJB100M4，AKA97-YEJB112M4，AKA97-YEJB132M4，AKA97-YEJB160M4，AKA97-YEJB180M4，AKA97-YEJB200M4，AKA97-YEJB80M4，AKA97-YEJB90M4，AKA97-YP100M4，AKA97-YP112M4，AKA97-YP132M4，AKA97-YP160M4，AKA97-YP180M4，AKA97-YP200M4，AKA97-YP80M4，AKA97-YP90M4，AKA97-YPB100M4，AKA97-YPB112M4，AKA97-YPB132M4，AKA97-YPB160M4，AKA97-YPB180M4，AKA97-YPB200M4，AKA97-YPB80M4，AKA97-YPB90M4，AKA97-YPE100M4，AKA97-YPE112M4，AKA97-YPE132M4，AKA97-YPE160M4，AKA97-YPE180M4，AKA97-YPE200M4，AKA97-YPE80M4，AKA97-YPE90M4，AKA97-YS100M4，AKA97-YS112M4，AKA97-YS132M4，AKA97-YS160M4，AKA97-YS180M4，AKA97-YS200M4，AKA97-YS80M4，AKA97-YS90M4，AKA97-YVB100M4，AKA97-YVB112M4，AKA97-YVB132M4，AKA97-YVB160M4，AKA97-YVB180M4，AKA97-YVB200M4，AKA97-YVB80M4，AKA97-YVB90M4，AKA97-YVP100M4，AKA97-YVP112M4，AKA97-YVP132M4，AKA97-YVP160M4，AKA97-YVP180M4，AKA97-YVP200M4，AKA97-YVP80M4，AKA97-YVP90M4，AKA97-YVPEJ100M4，AKA97-YVPEJ112M4，AKA97-YVPEJ132M4，AKA97-YVPEJ160M4，AKA97-YVPEJ180M4，AKA97-YVPEJ200M4，AKA97-YVPEJ80M4，AKA97-YVPEJ90M4，NKA97-Y1.1SKA，NKA97-Y1.5SKA，NKA97-Y100M4，NKA97-Y112M4，NKA97-Y11SKA，NKA97-Y132M4，NKA97-Y15SKA，NKA97-Y160M4，NKA97-Y18.5SKA，NKA97-Y180M4，NKA97-Y2.2SKA，NKA97-Y200M4，NKA97-Y22SKA，NKA97-Y30SKA，NKA97-Y3SKA，NKA97-Y4SKA，NKA97-Y5.5SKA，NKA97-Y7.5SKA，NKA97-Y80M4，NKA97-Y90M4，NKA97-YB100M4，NKA97-YB112M4，NKA97-YB132M4，NKA97-YB160M4，NKA97-YB180M4，NKA97-YB200M4，NKA97-YB80M4，NKA97-YB90M4，NKA97-YDP100M4，NKA97-YDP112M4，NKA97-YDP132M4，NKA97-YDP160M4，NKA97-YDP180M4，NKA97-YDP200M4，NKA97-YDP80M4，NKA97-YDP90M4，NKA97-YE100M4，NKA97-YE112M4，NKA97-YE132M4，NKA97-YE160M4，NKA97-YE180M4，NKA97-YE200M4，NKA97-YE80M4，NKA97-YE90M4，NKA97-YEJ100M4，NKA97-YEJ112M4，NKA97-YEJ132M4，NKA97-YEJ160M4，NKA97-YEJ180M4，NKA97-YEJ200M4，NKA97-YEJ80M4，NKA97-YEJ90M4，NKA97-YEJB100M4，NKA97-YEJB112M4，NKA97-YEJB132M4，NKA97-YEJB160M4，NKA97-YEJB180M4，NKA97-YEJB200M4，NKA97-YEJB80M4，NKA97-YEJB90M4，NKA97-YP100M4，NKA97-YP112M4，NKA97-YP132M4，NKA97-YP160M4，NKA97-YP180M4，NKA97-YP200M4，NKA97-YP80M4，NKA97-YP90M4，NKA97-YPB100M4，NKA97-YPB112M4，NKA97-YPB132M4，NKA97-YPB160M4，NKA97-YPB180M4，NKA97-YPB200M4，NKA97-YPB80M4，NKA97-YPB90M4，NKA97-YPE100M4，NKA97-YPE112M4，NKA97-YPE132M4，NKA97-YPE160M4，NKA97-YPE180M4，NKA97-YPE200M4，NKA97-YPE80M4，NKA97-YPE90M4，NKA97-YS100M4，NKA97-YS112M4，NKA97-YS132M4，NKA97-YS160M4，NKA97-YS180M4，NKA97-YS200M4，NKA97-YS80M4，NKA97-YS90M4，NKA97-YVB100M4，NKA97-YVB112M4，NKA97-YVB132M4，NKA97-YVB160M4，NKA97-YVB180M4，NKA97-YVB200M4，NKA97-YVB80M4，NKA97-YVB90M4，NKA97-YVP100M4，NKA97-YVP112M4，NKA97-YVP132M4，NKA97-YVP160M4，NKA97-YVP180M4，NKA97-YVP200M4，NKA97-YVP80M4，NKA97-YVP90M4，NKA97-YVPEJ100M4，NKA97-YVPEJ112M4，NKA97-YVPEJ132M4，NKA97-YVPEJ160M4，NKA97-YVPEJ180M4，NKA97-YVPEJ200M4，NKA97-YVPEJ80M4，NKA97-YVPEJ90M4，GKA99-Y1.1SKA，GKA99-Y1.5SKA，GKA99-Y100M4，GKA99-Y112M4，GKA99-Y11SKA，GKA99-Y132M4，GKA99-Y15SKA，GKA99-Y160M4，GKA99-Y18.5SKA，GKA99-Y180M4，GKA99-Y2.2SKA，GKA99-Y200M4，GKA99-Y22SKA，GKA99-Y30SKA，GKA99-Y3SKA，GKA99-Y4SKA，GKA99-Y5.5SKA，GKA99-Y7.5SKA，GKA99-Y80M4，GKA99-Y90M4，GKA99-YB100M4，GKA99-YB112M4，GKA99-YB132M4，GKA99-YB160M4，GKA99-YB180M4，GKA99-YB200M4，GKA99-YB80M4，GKA99-YB90M4，GKA99-YDP100M4，GKA99-YDP112M4，GKA99-YDP132M4，GKA99-YDP160M4，GKA99-YDP180M4，GKA99-YDP200M4，GKA99-YDP80M4，GKA99-YDP90M4，GKA99-YE100M4，GKA99-YE112M4，GKA99-YE132M4，GKA99-YE160M4，GKA99-YE180M4，GKA99-YE200M4，GKA99-YE80M4，GKA99-YE90M4，GKA99-YEJ100M4，GKA99-YEJ112M4，GKA99-YEJ132M4，GKA99-YEJ160M4，GKA99-YEJ180M4，GKA99-YEJ200M4，GKA99-YEJ80M4，GKA99-YEJ90M4，GKA99-YEJB100M4，GKA99-YEJB112M4，GKA99-YEJB132M4，GKA99-YEJB160M4，GKA99-YEJB180M4，GKA99-YEJB200M4，GKA99-YEJB80M4，GKA99-YEJB90M4，GKA99-YP100M4，GKA99-YP112M4，GKA99-YP132M4，GKA99-YP160M4，GKA99-YP180M4，GKA99-YP200M4，GKA99-YP80M4，GKA99-YP90M4，GKA99-YPB100M4，GKA99-YPB112M4，GKA99-YPB132M4，GKA99-YPB160M4，GKA99-YPB180M4，GKA99-YPB200M4，GKA99-YPB80M4，GKA99-YPB90M4，GKA99-YPE100M4，GKA99-YPE112M4，GKA99-YPE132M4，GKA99-YPE160M4，GKA99-YPE180M4，GKA99-YPE200M4，GKA99-YPE80M4，GKA99-YPE90M4，GKA99-YS100M4，GKA99-YS112M4，GKA99-YS132M4，GKA99-YS160M4，GKA99-YS180M4，GKA99-YS200M4，GKA99-YS80M4，GKA99-YS90M4，GKA99-YVB100M4，GKA99-YVB112M4，GKA99-YVB132M4，GKA99-YVB160M4，GKA99-YVB180M4，GKA99-YVB200M4，GKA99-YVB80M4，GKA99-YVB90M4，GKA99-YVP100M4，GKA99-YVP112M4，GKA99-YVP132M4，GKA99-YVP160M4，GKA99-YVP180M4，GKA99-YVP200M4，GKA99-YVP80M4，GKA99-YVP90M4，GKA99-YVPEJ100M4，GKA99-YVPEJ112M4，GKA99-YVPEJ132M4，GKA99-YVPEJ160M4，GKA99-YVPEJ180M4，GKA99-YVPEJ200M4，GKA99-YVPEJ80M4，GKA99-YVPEJ90M4。

KA99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K99減速機
