R89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R89R59減速機選型樣本。

R89R59-YVP0.75KW-4P-256-M5-180°

R/R：系列代號

89/59：減速機規格代號

Y：電機

VP：變頻電機

0.75KW：電機功率

4P：電機級數

256：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

R89R59減速機潤滑油檢查：

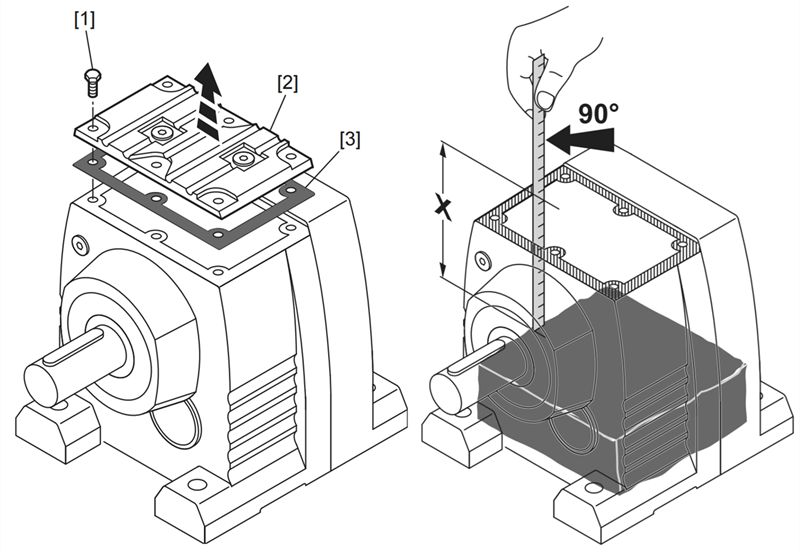

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

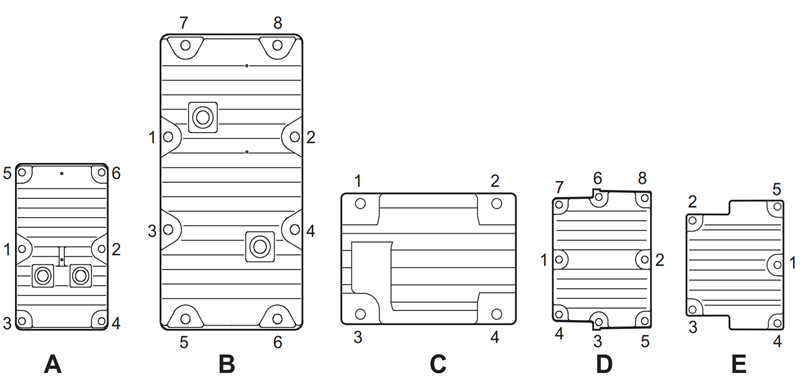

R89R59減速機油位檢查完畢后密封R89R59減速機：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

R89R59減速機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R89R59減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。R系列減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。臥式減速機

R89R59減速機型號：

YQR87R57-Y63M4，YQR87R57-Y71M4，YQR87R57-Y80M4，YQR87R57-Y90M4，YQR87RF57-Y0.12KW，YQR87RF57-Y0.18KW，YQR87RF57-Y0.25KW，YQR87RF57-Y0.37KW，YQR87RF57-Y0.55KW，YQR87RF57-Y0.75KW，YQR87RF57-Y1.1KW，YQR87RF57-Y63M4，YQR87RF57-Y71M4，YQR87RF57-Y80M4，YQR87RF57-Y90M4，YQR87RF57-YB63M4，YQR87RF57-YB71M4，YQR87RF57-YB80M4，YQR87RF57-YB90S4，YQR87RF57-YDP63M4，YQR87RF57-YDP71M4，YQR87RF57-YDP80M4，YQR87RF57-YDP90S4，YQR87RF57-YE63M4，YQR87RF57-YE71M4，YQR87RF57-YE80M4，YQR87RF57-YE90S4，YQR87RF57-YEJ63M4，YQR87RF57-YEJ71M4，YQR87RF57-YEJ80M4，YQR87RF57-YEJ90S4，YQR87RF57-YEJB63M4，YQR87RF57-YEJB71M4，YQR87RF57-YEJB80M4，YQR87RF57-YEJB90S4，YQR87RF57-YP63M4，YQR87RF57-YP71M4，YQR87RF57-YP80M4，YQR87RF57-YP90S4，YQR87RF57-YPB63M4，YQR87RF57-YPB71M4，YQR87RF57-YPB80M4，YQR87RF57-YPB90S4，YQR87RF57-YPE63M4，YQR87RF57-YPE71M4，YQR87RF57-YPE80M4，YQR87RF57-YPE90S4，YQR87RF57-YS63M4，YQR87RF57-YS71M4，YQR87RF57-YS80M4，YQR87RF57-YS90S4，YQR87RF57-YVB63M4，YQR87RF57-YVB71M4，YQR87RF57-YVB80M4，YQR87RF57-YVB90S4，YQR87RF57-YVP63M4，YQR87RF57-YVP71M4，YQR87RF57-YVP80M4，YQR87RF57-YVP90S4，YQR87RF57-YVPEJ63M4，YQR87RF57-YVPEJ71M4，YQR87RF57-YVPEJ80M4，YQR87RF57-YVPEJ90S4，AR87R57-Y63M4，AR87R57-Y71M4，AR87R57-Y80M4，AR87R57-Y90M4，AR87RF57-Y0.12KW，AR87RF57-Y0.18KW，AR87RF57-Y0.25KW，AR87RF57-Y0.37KW，AR87RF57-Y0.55KW，AR87RF57-Y0.75KW，AR87RF57-Y1.1KW，AR87RF57-Y63M4，AR87RF57-Y71M4，AR87RF57-Y80M4，AR87RF57-Y90M4，AR87RF57-YB63M4，AR87RF57-YB71M4，AR87RF57-YB80M4，AR87RF57-YB90S4，AR87RF57-YDP63M4，AR87RF57-YDP71M4，AR87RF57-YDP80M4，AR87RF57-YDP90S4，AR87RF57-YE63M4，AR87RF57-YE71M4，AR87RF57-YE80M4，AR87RF57-YE90S4，AR87RF57-YEJ63M4，AR87RF57-YEJ71M4，AR87RF57-YEJ80M4，AR87RF57-YEJ90S4，AR87RF57-YEJB63M4，AR87RF57-YEJB71M4，AR87RF57-YEJB80M4，AR87RF57-YEJB90S4，AR87RF57-YP63M4，AR87RF57-YP71M4，AR87RF57-YP80M4，AR87RF57-YP90S4，AR87RF57-YPB63M4，AR87RF57-YPB71M4，AR87RF57-YPB80M4，AR87RF57-YPB90S4，AR87RF57-YPE63M4，AR87RF57-YPE71M4，AR87RF57-YPE80M4，AR87RF57-YPE90S4，AR87RF57-YS63M4，AR87RF57-YS71M4，AR87RF57-YS80M4，AR87RF57-YS90S4，AR87RF57-YVB63M4，AR87RF57-YVB71M4，AR87RF57-YVB80M4，AR87RF57-YVB90S4，AR87RF57-YVP63M4，AR87RF57-YVP71M4，AR87RF57-YVP80M4，AR87RF57-YVP90S4，AR87RF57-YVPEJ63M4，AR87RF57-YVPEJ71M4，AR87RF57-YVPEJ80M4，AR87RF57-YVPEJ90S4，SR87R57-Y63M4，SR87R57-Y71M4，SR87R57-Y80M4，SR87R57-Y90M4，SR87RF57-Y0.12KW，SR87RF57-Y0.18KW，SR87RF57-Y0.25KW，SR87RF57-Y0.37KW，SR87RF57-Y0.55KW，SR87RF57-Y0.75KW，SR87RF57-Y1.1KW，SR87RF57-Y63M4，SR87RF57-Y71M4，SR87RF57-Y80M4，SR87RF57-Y90M4，SR87RF57-YB63M4，SR87RF57-YB71M4，SR87RF57-YB80M4，SR87RF57-YB90S4，SR87RF57-YDP63M4，SR87RF57-YDP71M4，SR87RF57-YDP80M4，SR87RF57-YDP90S4，SR87RF57-YE63M4，SR87RF57-YE71M4，SR87RF57-YE80M4，SR87RF57-YE90S4，SR87RF57-YEJ63M4，SR87RF57-YEJ71M4，SR87RF57-YEJ80M4，SR87RF57-YEJ90S4，SR87RF57-YEJB63M4，SR87RF57-YEJB71M4，SR87RF57-YEJB80M4，SR87RF57-YEJB90S4，SR87RF57-YP63M4，SR87RF57-YP71M4，SR87RF57-YP80M4，SR87RF57-YP90S4，SR87RF57-YPB63M4，SR87RF57-YPB71M4，SR87RF57-YPB80M4，SR87RF57-YPB90S4，SR87RF57-YPE63M4，SR87RF57-YPE71M4，SR87RF57-YPE80M4，SR87RF57-YPE90S4，SR87RF57-YS63M4，SR87RF57-YS71M4，SR87RF57-YS80M4，SR87RF57-YS90S4，SR87RF57-YVB63M4，SR87RF57-YVB71M4，SR87RF57-YVB80M4，SR87RF57-YVB90S4，SR87RF57-YVP63M4，SR87RF57-YVP71M4，SR87RF57-YVP80M4，SR87RF57-YVP90S4，SR87RF57-YVPEJ63M4，SR87RF57-YVPEJ71M4，SR87RF57-YVPEJ80M4，SR87RF57-YVPEJ90S4，XDR87R57-Y63M4，XDR87R57-Y71M4，XDR87R57-Y80M4，XDR87R57-Y90M4，XDR87RF57-Y0.12KW，XDR87RF57-Y0.18KW，XDR87RF57-Y0.25KW，XDR87RF57-Y0.37KW，XDR87RF57-Y0.55KW，XDR87RF57-Y0.75KW，XDR87RF57-Y1.1KW，XDR87RF57-Y63M4，XDR87RF57-Y71M4，XDR87RF57-Y80M4，XDR87RF57-Y90M4，XDR87RF57-YB63M4，XDR87RF57-YB71M4，XDR87RF57-YB80M4，XDR87RF57-YB90S4，XDR87RF57-YDP63M4，XDR87RF57-YDP71M4，XDR87RF57-YDP80M4，XDR87RF57-YDP90S4，XDR87RF57-YE63M4，XDR87RF57-YE71M4，XDR87RF57-YE80M4，XDR87RF57-YE90S4，XDR87RF57-YEJ63M4，XDR87RF57-YEJ71M4，XDR87RF57-YEJ80M4，XDR87RF57-YEJ90S4，XDR87RF57-YEJB63M4，XDR87RF57-YEJB71M4，XDR87RF57-YEJB80M4，XDR87RF57-YEJB90S4，XDR87RF57-YP63M4，XDR87RF57-YP71M4，XDR87RF57-YP80M4，XDR87RF57-YP90S4，XDR87RF57-YPB63M4，XDR87RF57-YPB71M4，XDR87RF57-YPB80M4，XDR87RF57-YPB90S4，XDR87RF57-YPE63M4，XDR87RF57-YPE71M4，XDR87RF57-YPE80M4，XDR87RF57-YPE90S4，XDR87RF57-YS63M4，XDR87RF57-YS71M4，XDR87RF57-YS80M4，XDR87RF57-YS90S4，XDR87RF57-YVB63M4，XDR87RF57-YVB71M4，XDR87RF57-YVB80M4，XDR87RF57-YVB90S4，XDR87RF57-YVP63M4，XDR87RF57-YVP71M4，XDR87RF57-YVP80M4，XDR87RF57-YVP90S4，XDR87RF57-YVPEJ63M4，XDR87RF57-YVPEJ71M4，XDR87RF57-YVPEJ80M4，XDR87RF57-YVPEJ90S4，WR87R57-Y63M4，WR87R57-Y71M4，WR87R57-Y80M4，WR87R57-Y90M4，WR87RF57-Y0.12KW，WR87RF57-Y0.18KW，WR87RF57-Y0.25KW，WR87RF57-Y0.37KW，WR87RF57-Y0.55KW，WR87RF57-Y0.75KW，WR87RF57-Y1.1KW，WR87RF57-Y63M4，WR87RF57-Y71M4，WR87RF57-Y80M4，WR87RF57-Y90M4，WR87RF57-YB63M4，WR87RF57-YB71M4，WR87RF57-YB80M4，WR87RF57-YB90S4，WR87RF57-YDP63M4，WR87RF57-YDP71M4，WR87RF57-YDP80M4，WR87RF57-YDP90S4，WR87RF57-YE63M4，WR87RF57-YE71M4，WR87RF57-YE80M4，WR87RF57-YE90S4，WR87RF57-YEJ63M4，WR87RF57-YEJ71M4，WR87RF57-YEJ80M4，WR87RF57-YEJ90S4，WR87RF57-YEJB63M4，WR87RF57-YEJB71M4，WR87RF57-YEJB80M4，WR87RF57-YEJB90S4，WR87RF57-YP63M4，WR87RF57-YP71M4，WR87RF57-YP80M4，WR87RF57-YP90S4，WR87RF57-YPB63M4，WR87RF57-YPB71M4，WR87RF57-YPB80M4，WR87RF57-YPB90S4，WR87RF57-YPE63M4，WR87RF57-YPE71M4，WR87RF57-YPE80M4，WR87RF57-YPE90S4，WR87RF57-YS63M4，WR87RF57-YS71M4，WR87RF57-YS80M4，WR87RF57-YS90S4，WR87RF57-YVB63M4，WR87RF57-YVB71M4，WR87RF57-YVB80M4，WR87RF57-YVB90S4，WR87RF57-YVP63M4，WR87RF57-YVP71M4，WR87RF57-YVP80M4，WR87RF57-YVP90S4，WR87RF57-YVPEJ63M4，WR87RF57-YVPEJ71M4，WR87RF57-YVPEJ80M4，WR87RF57-YVPEJ90S4，JCR87R57-Y63M4，JCR87R57-Y71M4，JCR87R57-Y80M4，JCR87R57-Y90M4，JCR87RF57-Y0.12KW，JCR87RF57-Y0.18KW，JCR87RF57-Y0.25KW，JCR87RF57-Y0.37KW，JCR87RF57-Y0.55KW，JCR87RF57-Y0.75KW，JCR87RF57-Y1.1KW，JCR87RF57-Y63M4，JCR87RF57-Y71M4，JCR87RF57-Y80M4，JCR87RF57-Y90M4，JCR87RF57-YB63M4，JCR87RF57-YB71M4，JCR87RF57-YB80M4，JCR87RF57-YB90S4，JCR87RF57-YDP63M4，JCR87RF57-YDP71M4，JCR87RF57-YDP80M4，JCR87RF57-YDP90S4，JCR87RF57-YE63M4，JCR87RF57-YE71M4，JCR87RF57-YE80M4，JCR87RF57-YE90S4，JCR87RF57-YEJ63M4，JCR87RF57-YEJ71M4，JCR87RF57-YEJ80M4，JCR87RF57-YEJ90S4，JCR87RF57-YEJB63M4，JCR87RF57-YEJB71M4，JCR87RF57-YEJB80M4，JCR87RF57-YEJB90S4，JCR87RF57-YP63M4，JCR87RF57-YP71M4，JCR87RF57-YP80M4，JCR87RF57-YP90S4，JCR87RF57-YPB63M4，JCR87RF57-YPB71M4，JCR87RF57-YPB80M4，JCR87RF57-YPB90S4，JCR87RF57-YPE63M4，JCR87RF57-YPE71M4，JCR87RF57-YPE80M4，JCR87RF57-YPE90S4，JCR87RF57-YS63M4，JCR87RF57-YS71M4，JCR87RF57-YS80M4，JCR87RF57-YS90S4，JCR87RF57-YVB63M4，JCR87RF57-YVB71M4，JCR87RF57-YVB80M4，JCR87RF57-YVB90S4，JCR87RF57-YVP63M4，JCR87RF57-YVP71M4，JCR87RF57-YVP80M4，JCR87RF57-YVP90S4，JCR87RF57-YVPEJ63M4，JCR87RF57-YVPEJ71M4，JCR87RF57-YVPEJ80M4，JCR87RF57-YVPEJ90S4，NR87R57-Y63M4，NR87R57-Y71M4，NR87R57-Y80M4，NR87R57-Y90M4，NR87RF57-Y0.12KW，NR87RF57-Y0.18KW，NR87RF57-Y0.25KW，NR87RF57-Y0.37KW，NR87RF57-Y0.55KW，NR87RF57-Y0.75KW，NR87RF57-Y1.1KW，NR87RF57-Y63M4，NR87RF57-Y71M4，NR87RF57-Y80M4，NR87RF57-Y90M4，NR87RF57-YB63M4，NR87RF57-YB71M4，NR87RF57-YB80M4，NR87RF57-YB90S4，NR87RF57-YDP63M4，NR87RF57-YDP71M4，NR87RF57-YDP80M4，NR87RF57-YDP90S4，NR87RF57-YE63M4，NR87RF57-YE71M4，NR87RF57-YE80M4，NR87RF57-YE90S4，NR87RF57-YEJ63M4，NR87RF57-YEJ71M4，NR87RF57-YEJ80M4，NR87RF57-YEJ90S4，NR87RF57-YEJB63M4，NR87RF57-YEJB71M4，NR87RF57-YEJB80M4，NR87RF57-YEJB90S4，NR87RF57-YP63M4，NR87RF57-YP71M4，NR87RF57-YP80M4，NR87RF57-YP90S4，NR87RF57-YPB63M4，NR87RF57-YPB71M4，NR87RF57-YPB80M4，NR87RF57-YPB90S4，NR87RF57-YPE63M4，NR87RF57-YPE71M4，NR87RF57-YPE80M4，NR87RF57-YPE90S4，NR87RF57-YS63M4，NR87RF57-YS71M4，NR87RF57-YS80M4，NR87RF57-YS90S4，NR87RF57-YVB63M4，NR87RF57-YVB71M4，NR87RF57-YVB80M4，NR87RF57-YVB90S4，NR87RF57-YVP63M4，NR87RF57-YVP71M4，NR87RF57-YVP80M4，NR87RF57-YVP90S4，NR87RF57-YVPEJ63M4，NR87RF57-YVPEJ71M4，NR87RF57-YVPEJ80M4，NR87RF57-YVPEJ90S4，RW87RW57-Y63M4，RW87RW57-Y71M4，RW87RW57-Y80M4，RW87RW57-Y90M4，RW87RWF57-Y0.12KW，RW87RWF57-Y0.18KW，RW87RWF57-Y0.25KW，RW87RWF57-Y0.37KW，RW87RWF57-Y0.55KW，RW87RWF57-Y0.75KW，RW87RWF57-Y1.1KW，RW87RWF57-Y63M4，RW87RWF57-Y71M4，RW87RWF57-Y80M4，RW87RWF57-Y90M4，RW87RWF57-YB63M4，RW87RWF57-YB71M4，RW87RWF57-YB80M4，RW87RWF57-YB90S4，RW87RWF57-YDP63M4，RW87RWF57-YDP71M4，RW87RWF57-YDP80M4，RW87RWF57-YDP90S4，RW87RWF57-YE63M4，RW87RWF57-YE71M4，RW87RWF57-YE80M4，RW87RWF57-YE90S4，RW87RWF57-YEJ63M4，RW87RWF57-YEJ71M4，RW87RWF57-YEJ80M4，RW87RWF57-YEJ90S4，RW87RWF57-YEJB63M4，RW87RWF57-YEJB71M4，RW87RWF57-YEJB80M4，RW87RWF57-YEJB90S4，RW87RWF57-YP63M4，RW87RWF57-YP71M4，RW87RWF57-YP80M4，RW87RWF57-YP90S4，RW87RWF57-YPB63M4，RW87RWF57-YPB71M4，RW87RWF57-YPB80M4，RW87RWF57-YPB90S4，RW87RWF57-YPE63M4，RW87RWF57-YPE71M4，RW87RWF57-YPE80M4，RW87RWF57-YPE90S4，RW87RWF57-YS63M4，RW87RWF57-YS71M4，RW87RWF57-YS80M4，RW87RWF57-YS90S4，RW87RWF57-YVB63M4，RW87RWF57-YVB71M4，RW87RWF57-YVB80M4，RW87RWF57-YVB90S4，RW87RWF57-YVP63M4，RW87RWF57-YVP71M4，RW87RWF57-YVP80M4，RW87RWF57-YVP90S4，RW87RWF57-YVPEJ63M4，RW87RWF57-YVPEJ71M4，RW87RWF57-YVPEJ80M4，RW87RWF57-YVPEJ90S4，R89R59-Y63M4，R89R59-Y71M4，R89R59-Y80M4，R89R59-Y90M4，R89RF59-Y0.12KW，R89RF59-Y0.18KW，R89RF59-Y0.25KW，R89RF59-Y0.37KW，R89RF59-Y0.55KW，R89RF59-Y0.75KW，R89RF59-Y1.1KW，R89RF59-Y63M4，R89RF59-Y71M4，R89RF59-Y80M4，R89RF59-Y90M4，R89RF59-YB63M4，R89RF59-YB71M4，R89RF59-YB80M4，R89RF59-YB90S4，R89RF59-YDP63M4，R89RF59-YDP71M4，R89RF59-YDP80M4，R89RF59-YDP90S4，R89RF59-YE63M4，R89RF59-YE71M4，R89RF59-YE80M4，R89RF59-YE90S4，R89RF59-YEJ63M4，R89RF59-YEJ71M4，R89RF59-YEJ80M4，R89RF59-YEJ90S4，R89RF59-YEJB63M4，R89RF59-YEJB71M4，R89RF59-YEJB80M4，R89RF59-YEJB90S4，R89RF59-YP63M4，R89RF59-YP71M4，R89RF59-YP80M4，R89RF59-YP90S4，R89RF59-YPB63M4，R89RF59-YPB71M4，R89RF59-YPB80M4，R89RF59-YPB90S4，R89RF59-YPE63M4，R89RF59-YPE71M4，R89RF59-YPE80M4，R89RF59-YPE90S4，R89RF59-YS63M4，R89RF59-YS71M4，R89RF59-YS80M4，R89RF59-YS90S4，R89RF59-YVB63M4，R89RF59-YVB71M4，R89RF59-YVB80M4，R89RF59-YVB90S4，R89RF59-YVP63M4，R89RF59-YVP71M4，R89RF59-YVP80M4，R89RF59-YVP90S4，R89RF59-YVPEJ63M4，R89RF59-YVPEJ71M4，R89RF59-YVPEJ80M4，R89RF59-YVPEJ90S4。

R89R59減速機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-rxiliejiansuji-cn.html

推薦型號：R89減速機
