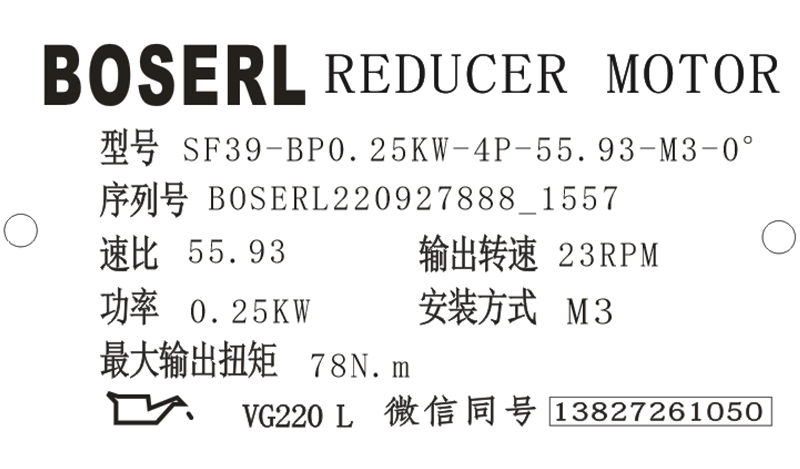

SF39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF39減速器選型樣本。

SF39-BP0.25KW-4P-55.93-M3-0°

SF：系列代號

39：減速機規格代號

BP：電機

0.25KW：電機功率

4P：電機級數

55.93：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

SF39減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動SF39減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

SF39減速器安裝操作的正確方法：

SF39減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的SF39減速器選型樣本”）。自鎖減速機

SF39減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

SF39減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列SF39減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的SF39減速器，啟動SF39減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機

SF39減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

SF39減速器型號：

WSF37-Y0.12KW，WSF37-Y0.18KW，WSF37-Y0.25KW，WSF37-Y0.37KW，WSF37-Y0.55KW，WSF37-Y0.75KW，WSF37-Y1.1KW，WSF37-Y1.5KW，WSF37-Y63M4，WSF37-Y71M4，WSF37-Y80M4，WSF37-Y90M4，WSF37-YB63M4，WSF37-YB71M4，WSF37-YB80M4，WSF37-YB90M4，WSF37-YDP63M4，WSF37-YDP71M4，WSF37-YDP80M4，WSF37-YDP90M4，WSF37-YE63M4，WSF37-YE71M4，WSF37-YE80M4，WSF37-YE90M4，WSF37-YEJ63M4，WSF37-YEJ71M4，WSF37-YEJ80M4，WSF37-YEJ90M4，WSF37-YEJB63M4，WSF37-YEJB71M4，WSF37-YEJB80M4，WSF37-YEJB90M4，WSF37-YP63M4，WSF37-YP71M4，WSF37-YP80M4，WSF37-YP90M4，WSF37-YPB63M4，WSF37-YPB71M4，WSF37-YPB80M4，WSF37-YPB90M4，WSF37-YPE63M4，WSF37-YPE71M4，WSF37-YPE80M4，WSF37-YPE90M4，WSF37-YS63M4，WSF37-YS71M4，WSF37-YS80M4，WSF37-YS90M4，WSF37-YVB63M4，WSF37-YVB71M4，WSF37-YVB80M4，WSF37-YVB90M4，WSF37-YVP63M4，WSF37-YVP71M4，WSF37-YVP80M4，WSF37-YVP90M4，WSF37-YVPEJ63M4，WSF37-YVPEJ71M4，WSF37-YVPEJ80M4，WSF37-YVPEJ90M4，NSF37-Y0.12KW，NSF37-Y0.18KW，NSF37-Y0.25KW，NSF37-Y0.37KW，NSF37-Y0.55KW，NSF37-Y0.75KW，NSF37-Y1.1KW，NSF37-Y1.5KW，NSF37-Y63M4，NSF37-Y71M4，NSF37-Y80M4，NSF37-Y90M4，NSF37-YB63M4，NSF37-YB71M4，NSF37-YB80M4，NSF37-YB90M4，NSF37-YDP63M4，NSF37-YDP71M4，NSF37-YDP80M4，NSF37-YDP90M4，NSF37-YE63M4，NSF37-YE71M4，NSF37-YE80M4，NSF37-YE90M4，NSF37-YEJ63M4，NSF37-YEJ71M4，NSF37-YEJ80M4，NSF37-YEJ90M4，NSF37-YEJB63M4，NSF37-YEJB71M4，NSF37-YEJB80M4，NSF37-YEJB90M4，NSF37-YP63M4，NSF37-YP71M4，NSF37-YP80M4，NSF37-YP90M4，NSF37-YPB63M4，NSF37-YPB71M4，NSF37-YPB80M4，NSF37-YPB90M4，NSF37-YPE63M4，NSF37-YPE71M4，NSF37-YPE80M4，NSF37-YPE90M4，NSF37-YS63M4，NSF37-YS71M4，NSF37-YS80M4，NSF37-YS90M4，NSF37-YVB63M4，NSF37-YVB71M4，NSF37-YVB80M4，NSF37-YVB90M4，NSF37-YVP63M4，NSF37-YVP71M4，NSF37-YVP80M4，NSF37-YVP90M4，NSF37-YVPEJ63M4，NSF37-YVPEJ71M4，NSF37-YVPEJ80M4，NSF37-YVPEJ90M4，ASF37-Y0.12KW，ASF37-Y0.18KW，ASF37-Y0.25KW，ASF37-Y0.37KW，ASF37-Y0.55KW，ASF37-Y0.75KW，ASF37-Y1.1KW，ASF37-Y1.5KW，ASF37-Y63M4，ASF37-Y71M4，ASF37-Y80M4，ASF37-Y90M4，ASF37-YB63M4，ASF37-YB71M4，ASF37-YB80M4，ASF37-YB90M4，ASF37-YDP63M4，ASF37-YDP71M4，ASF37-YDP80M4，ASF37-YDP90M4，ASF37-YE63M4，ASF37-YE71M4，ASF37-YE80M4，ASF37-YE90M4，ASF37-YEJ63M4，ASF37-YEJ71M4，ASF37-YEJ80M4，ASF37-YEJ90M4，ASF37-YEJB63M4，ASF37-YEJB71M4，ASF37-YEJB80M4，ASF37-YEJB90M4，ASF37-YP63M4，ASF37-YP71M4，ASF37-YP80M4，ASF37-YP90M4，ASF37-YPB63M4，ASF37-YPB71M4，ASF37-YPB80M4，ASF37-YPB90M4，ASF37-YPE63M4，ASF37-YPE71M4，ASF37-YPE80M4，ASF37-YPE90M4，ASF37-YS63M4，ASF37-YS71M4，ASF37-YS80M4，ASF37-YS90M4，ASF37-YVB63M4，ASF37-YVB71M4，ASF37-YVB80M4，ASF37-YVB90M4，ASF37-YVP63M4，ASF37-YVP71M4，ASF37-YVP80M4，ASF37-YVP90M4，ASF37-YVPEJ63M4，ASF37-YVPEJ71M4，ASF37-YVPEJ80M4，ASF37-YVPEJ90M4，SSF37-Y0.12KW，SSF37-Y0.18KW，SSF37-Y0.25KW，SSF37-Y0.37KW，SSF37-Y0.55KW，SSF37-Y0.75KW，SSF37-Y1.1KW，SSF37-Y1.5KW，SSF37-Y63M4，SSF37-Y71M4，SSF37-Y80M4，SSF37-Y90M4，SSF37-YB63M4，SSF37-YB71M4，SSF37-YB80M4，SSF37-YB90M4，SSF37-YDP63M4，SSF37-YDP71M4，SSF37-YDP80M4，SSF37-YDP90M4，SSF37-YE63M4，SSF37-YE71M4，SSF37-YE80M4，SSF37-YE90M4，SSF37-YEJ63M4，SSF37-YEJ71M4，SSF37-YEJ80M4，SSF37-YEJ90M4，SSF37-YEJB63M4，SSF37-YEJB71M4，SSF37-YEJB80M4，SSF37-YEJB90M4，SSF37-YP63M4，SSF37-YP71M4，SSF37-YP80M4，SSF37-YP90M4，SSF37-YPB63M4，SSF37-YPB71M4，SSF37-YPB80M4，SSF37-YPB90M4，SSF37-YPE63M4，SSF37-YPE71M4，SSF37-YPE80M4，SSF37-YPE90M4，SSF37-YS63M4，SSF37-YS71M4，SSF37-YS80M4，SSF37-YS90M4，SSF37-YVB63M4，SSF37-YVB71M4，SSF37-YVB80M4，SSF37-YVB90M4，SSF37-YVP63M4，SSF37-YVP71M4，SSF37-YVP80M4，SSF37-YVP90M4，SSF37-YVPEJ63M4，SSF37-YVPEJ71M4，SSF37-YVPEJ80M4，SSF37-YVPEJ90M4，GSF39-Y0.12KW，GSF39-Y0.18KW，GSF39-Y0.25KW，GSF39-Y0.37KW，GSF39-Y0.55KW，GSF39-Y0.75KW，GSF39-Y1.1KW，GSF39-Y1.5KW，GSF39-Y63M4，GSF39-Y71M4，GSF39-Y80M4，GSF39-Y90M4，GSF39-YB63M4，GSF39-YB71M4，GSF39-YB80M4，GSF39-YB90M4，GSF39-YDP63M4，GSF39-YDP71M4，GSF39-YDP80M4，GSF39-YDP90M4，GSF39-YE63M4，GSF39-YE71M4，GSF39-YE80M4，GSF39-YE90M4，GSF39-YEJ63M4，GSF39-YEJ71M4，GSF39-YEJ80M4，GSF39-YEJ90M4，GSF39-YEJB63M4，GSF39-YEJB71M4，GSF39-YEJB80M4，GSF39-YEJB90M4，GSF39-YP63M4，GSF39-YP71M4，GSF39-YP80M4，GSF39-YP90M4，GSF39-YPB63M4，GSF39-YPB71M4，GSF39-YPB80M4，GSF39-YPB90M4，GSF39-YPE63M4，GSF39-YPE71M4，GSF39-YPE80M4，GSF39-YPE90M4，GSF39-YS63M4，GSF39-YS71M4，GSF39-YS80M4，GSF39-YS90M4，GSF39-YVB63M4，GSF39-YVB71M4，GSF39-YVB80M4，GSF39-YVB90M4，GSF39-YVP63M4，GSF39-YVP71M4，GSF39-YVP80M4，GSF39-YVP90M4，GSF39-YVPEJ63M4，GSF39-YVPEJ71M4，GSF39-YVPEJ80M4，GSF39-YVPEJ90M4，SF37SF80，SF37SF90，SF37SF100，SF37SF112，SF37SF115，SF37SF140，SF37SF160，SF37SF190。

SF39減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S39減速機
