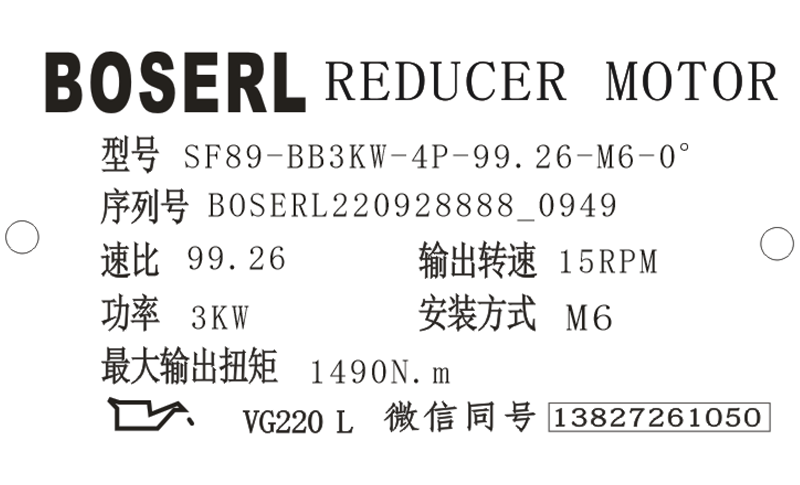

SF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF89減速機選型樣本。

SF89-BB3KW-4P-99.26-M6-0°

SF：系列代號

89：減速機規格代號

BB：電機

3KW：電機功率

4P：電機級數

99.26：減速機傳動比

M6：減速機安裝位置

0°：接線盒位置

SF89減速機潤滑油型號：

SF89減速機推薦使用的潤滑油，其等級和粘度指標見下表：

SF89減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據SF89減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“SF89減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。齒輪減速電機

SF89減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF89減速機選型樣本中列出了安裝位置從M1到M6SF89減速機相應的潤滑油加注標準，請自行下載查看。

SF89減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。

SF89減速機使用說明：

SF89減速機注意事項：若未注入正確的SF89減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。伺服電機蝸輪蝸桿減速機

SF89減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見SF89減速機說明書安裝位置章節中的內容。

SF89減速機的螺母：立式安裝SF89減速機輸出法蘭螺母規格M16；SF89減速機螺母/螺母擰緊扭矩強度等級10.9。

SF89減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

SF89減速機警告說明：由于SF89減速機發熱或SF89減速機油溫過高可能引起燙傷；對SF89減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機

SF89減速機型號：

XDSF87-Y0.55KW，XDSF87-Y0.75KW，XDSF87-Y1.1KW，XDSF87-Y1.5KW，XDSF87-Y100M4，XDSF87-Y112M4，XDSF87-Y11KW，XDSF87-Y132M4，XDSF87-Y15KW，XDSF87-Y160M4，XDSF87-Y2.2KW，XDSF87-Y3KW，XDSF87-Y4KW，XDSF87-Y5.5KW，XDSF87-Y7.5KW，XDSF87-Y71M4，XDSF87-Y80M4，XDSF87-Y90M4，XDSF87-YB100M4，XDSF87-YB112M4，XDSF87-YB132M4，XDSF87-YB160M4，XDSF87-YB71M4，XDSF87-YB80M4，XDSF87-YB90M4，XDSF87-YDP100M4，XDSF87-YDP112M4，XDSF87-YDP132M4，XDSF87-YDP160M4，XDSF87-YDP71M4，XDSF87-YDP80M4，XDSF87-YDP90M4，XDSF87-YE100M4，XDSF87-YE112M4，XDSF87-YE132M4，XDSF87-YE160M4，XDSF87-YE71M4，XDSF87-YE80M4，XDSF87-YE90M4，XDSF87-YEJ100M4，XDSF87-YEJ112M4，XDSF87-YEJ132M4，XDSF87-YEJ160M4，XDSF87-YEJ71M4，XDSF87-YEJ80M4，XDSF87-YEJ90M4，XDSF87-YEJB100M4，XDSF87-YEJB112M4，XDSF87-YEJB132M4，XDSF87-YEJB160M4，XDSF87-YEJB71M4，XDSF87-YEJB80M4，XDSF87-YEJB90M4，XDSF87-YP100M4，XDSF87-YP112M4，XDSF87-YP132M4，XDSF87-YP160M4，XDSF87-YP71M4，XDSF87-YP80M4，XDSF87-YP90M4，XDSF87-YPB100M4，XDSF87-YPB112M4，XDSF87-YPB132M4，XDSF87-YPB160M4，XDSF87-YPB71M4，XDSF87-YPB80M4，XDSF87-YPB90M4，XDSF87-YPE100M4，XDSF87-YPE112M4，XDSF87-YPE132M4，XDSF87-YPE160M4，XDSF87-YPE71M4，XDSF87-YPE80M4，XDSF87-YPE90M4，XDSF87-YS100M4，XDSF87-YS112M4，XDSF87-YS132M4，XDSF87-YS160M4，XDSF87-YS71M4，XDSF87-YS80M4，XDSF87-YS90M4，XDSF87-YVB100M4，XDSF87-YVB112M4，XDSF87-YVB132M4，XDSF87-YVB160M4，XDSF87-YVB71M4，XDSF87-YVB80M4，XDSF87-YVB90M4，XDSF87-YVP100M4，XDSF87-YVP112M4，XDSF87-YVP132M4，XDSF87-YVP160M4，XDSF87-YVP71M4，XDSF87-YVP80M4，XDSF87-YVP90M4，XDSF87-YVPEJ100M4，XDSF87-YVPEJ112M4，XDSF87-YVPEJ132M4，XDSF87-YVPEJ160M4，XDSF87-YVPEJ71M4，XDSF87-YVPEJ80M4，XDSF87-YVPEJ90M4，JCSF87-Y0.55KW，JCSF87-Y0.75KW，JCSF87-Y1.1KW，JCSF87-Y1.5KW，JCSF87-Y100M4，JCSF87-Y112M4，JCSF87-Y11KW，JCSF87-Y132M4，JCSF87-Y15KW，JCSF87-Y160M4，JCSF87-Y2.2KW，JCSF87-Y3KW，JCSF87-Y4KW，JCSF87-Y5.5KW，JCSF87-Y7.5KW，JCSF87-Y71M4，JCSF87-Y80M4，JCSF87-Y90M4，JCSF87-YB100M4，JCSF87-YB112M4，JCSF87-YB132M4，JCSF87-YB160M4，JCSF87-YB71M4，JCSF87-YB80M4，JCSF87-YB90M4，JCSF87-YDP100M4，JCSF87-YDP112M4，JCSF87-YDP132M4，JCSF87-YDP160M4，JCSF87-YDP71M4，JCSF87-YDP80M4，JCSF87-YDP90M4，JCSF87-YE100M4，JCSF87-YE112M4，JCSF87-YE132M4，JCSF87-YE160M4，JCSF87-YE71M4，JCSF87-YE80M4，JCSF87-YE90M4，JCSF87-YEJ100M4，JCSF87-YEJ112M4，JCSF87-YEJ132M4，JCSF87-YEJ160M4，JCSF87-YEJ71M4，JCSF87-YEJ80M4，JCSF87-YEJ90M4，JCSF87-YEJB100M4，JCSF87-YEJB112M4，JCSF87-YEJB132M4，JCSF87-YEJB160M4，JCSF87-YEJB71M4，JCSF87-YEJB80M4，JCSF87-YEJB90M4，JCSF87-YP100M4，JCSF87-YP112M4，JCSF87-YP132M4，JCSF87-YP160M4，JCSF87-YP71M4，JCSF87-YP80M4，JCSF87-YP90M4，JCSF87-YPB100M4，JCSF87-YPB112M4，JCSF87-YPB132M4，JCSF87-YPB160M4，JCSF87-YPB71M4，JCSF87-YPB80M4，JCSF87-YPB90M4，JCSF87-YPE100M4，JCSF87-YPE112M4，JCSF87-YPE132M4，JCSF87-YPE160M4，JCSF87-YPE71M4，JCSF87-YPE80M4，JCSF87-YPE90M4，JCSF87-YS100M4，JCSF87-YS112M4，JCSF87-YS132M4，JCSF87-YS160M4，JCSF87-YS71M4，JCSF87-YS80M4，JCSF87-YS90M4，JCSF87-YVB100M4，JCSF87-YVB112M4，JCSF87-YVB132M4，JCSF87-YVB160M4，JCSF87-YVB71M4，JCSF87-YVB80M4，JCSF87-YVB90M4，JCSF87-YVP100M4，JCSF87-YVP112M4，JCSF87-YVP132M4，JCSF87-YVP160M4，JCSF87-YVP71M4，JCSF87-YVP80M4，JCSF87-YVP90M4，JCSF87-YVPEJ100M4，JCSF87-YVPEJ112M4，JCSF87-YVPEJ132M4，JCSF87-YVPEJ160M4，JCSF87-YVPEJ71M4，JCSF87-YVPEJ80M4，JCSF87-YVPEJ90M4，YQSF87-Y0.55KW，YQSF87-Y0.75KW，YQSF87-Y1.1KW，YQSF87-Y1.5KW，YQSF87-Y100M4，YQSF87-Y112M4，YQSF87-Y11KW，YQSF87-Y132M4，YQSF87-Y15KW，YQSF87-Y160M4，YQSF87-Y2.2KW，YQSF87-Y3KW，YQSF87-Y4KW，YQSF87-Y5.5KW，YQSF87-Y7.5KW，YQSF87-Y71M4，YQSF87-Y80M4，YQSF87-Y90M4，YQSF87-YB100M4，YQSF87-YB112M4，YQSF87-YB132M4，YQSF87-YB160M4，YQSF87-YB71M4，YQSF87-YB80M4，YQSF87-YB90M4，YQSF87-YDP100M4，YQSF87-YDP112M4，YQSF87-YDP132M4，YQSF87-YDP160M4，YQSF87-YDP71M4，YQSF87-YDP80M4，YQSF87-YDP90M4，YQSF87-YE100M4，YQSF87-YE112M4，YQSF87-YE132M4，YQSF87-YE160M4，YQSF87-YE71M4，YQSF87-YE80M4，YQSF87-YE90M4，YQSF87-YEJ100M4，YQSF87-YEJ112M4，YQSF87-YEJ132M4，YQSF87-YEJ160M4，YQSF87-YEJ71M4，YQSF87-YEJ80M4，YQSF87-YEJ90M4，YQSF87-YEJB100M4，YQSF87-YEJB112M4，YQSF87-YEJB132M4，YQSF87-YEJB160M4，YQSF87-YEJB71M4，YQSF87-YEJB80M4，YQSF87-YEJB90M4，YQSF87-YP100M4，YQSF87-YP112M4，YQSF87-YP132M4，YQSF87-YP160M4，YQSF87-YP71M4，YQSF87-YP80M4，YQSF87-YP90M4，YQSF87-YPB100M4，YQSF87-YPB112M4，YQSF87-YPB132M4，YQSF87-YPB160M4，YQSF87-YPB71M4，YQSF87-YPB80M4，YQSF87-YPB90M4，YQSF87-YPE100M4，YQSF87-YPE112M4，YQSF87-YPE132M4，YQSF87-YPE160M4，YQSF87-YPE71M4，YQSF87-YPE80M4，YQSF87-YPE90M4，YQSF87-YS100M4，YQSF87-YS112M4，YQSF87-YS132M4，YQSF87-YS160M4，YQSF87-YS71M4，YQSF87-YS80M4，YQSF87-YS90M4，YQSF87-YVB100M4，YQSF87-YVB112M4，YQSF87-YVB132M4，YQSF87-YVB160M4，YQSF87-YVB71M4，YQSF87-YVB80M4，YQSF87-YVB90M4，YQSF87-YVP100M4，YQSF87-YVP112M4，YQSF87-YVP132M4，YQSF87-YVP160M4，YQSF87-YVP71M4，YQSF87-YVP80M4，YQSF87-YVP90M4，YQSF87-YVPEJ100M4，YQSF87-YVPEJ112M4，YQSF87-YVPEJ132M4，YQSF87-YVPEJ160M4，YQSF87-YVPEJ71M4，YQSF87-YVPEJ80M4，YQSF87-YVPEJ90M4，SWF87-Y0.55KW，SWF87-Y0.75KW，SWF87-Y1.1KW，SWF87-Y1.5KW，SWF87-Y100M4，SWF87-Y112M4，SWF87-Y11KW，SWF87-Y132M4，SWF87-Y15KW，SWF87-Y160M4，SWF87-Y2.2KW，SWF87-Y3KW，SWF87-Y4KW，SWF87-Y5.5KW，SWF87-Y7.5KW，SWF87-Y71M4，SWF87-Y80M4，SWF87-Y90M4，SWF87-YB100M4，SWF87-YB112M4，SWF87-YB132M4，SWF87-YB160M4，SWF87-YB71M4，SWF87-YB80M4，SWF87-YB90M4，SWF87-YDP100M4，SWF87-YDP112M4，SWF87-YDP132M4，SWF87-YDP160M4，SWF87-YDP71M4，SWF87-YDP80M4，SWF87-YDP90M4，SWF87-YE100M4，SWF87-YE112M4，SWF87-YE132M4，SWF87-YE160M4，SWF87-YE71M4，SWF87-YE80M4，SWF87-YE90M4，SWF87-YEJ100M4，SWF87-YEJ112M4，SWF87-YEJ132M4，SWF87-YEJ160M4，SWF87-YEJ71M4，SWF87-YEJ80M4，SWF87-YEJ90M4，SWF87-YEJB100M4，SWF87-YEJB112M4，SWF87-YEJB132M4，SWF87-YEJB160M4，SWF87-YEJB71M4，SWF87-YEJB80M4，SWF87-YEJB90M4，SWF87-YP100M4，SWF87-YP112M4，SWF87-YP132M4，SWF87-YP160M4，SWF87-YP71M4，SWF87-YP80M4，SWF87-YP90M4，SWF87-YPB100M4，SWF87-YPB112M4，SWF87-YPB132M4，SWF87-YPB160M4，SWF87-YPB71M4，SWF87-YPB80M4，SWF87-YPB90M4，SWF87-YPE100M4，SWF87-YPE112M4，SWF87-YPE132M4，SWF87-YPE160M4，SWF87-YPE71M4，SWF87-YPE80M4，SWF87-YPE90M4，SWF87-YS100M4，SWF87-YS112M4，SWF87-YS132M4，SWF87-YS160M4，SWF87-YS71M4，SWF87-YS80M4，SWF87-YS90M4，SWF87-YVB100M4，SWF87-YVB112M4，SWF87-YVB132M4，SWF87-YVB160M4，SWF87-YVB71M4，SWF87-YVB80M4，SWF87-YVB90M4，SWF87-YVP100M4，SWF87-YVP112M4，SWF87-YVP132M4，SWF87-YVP160M4，SWF87-YVP71M4，SWF87-YVP80M4，SWF87-YVP90M4，SWF87-YVPEJ100M4，SWF87-YVPEJ112M4，SWF87-YVPEJ132M4，SWF87-YVPEJ160M4，SWF87-YVPEJ71M4，SWF87-YVPEJ80M4，SWF87-YVPEJ90M4，SF89-Y0.55KW，SF89-Y0.75KW，SF89-Y1.1KW，SF89-Y1.5KW，SF89-Y100M4，SF89-Y112M4，SF89-Y11KW，SF89-Y132M4，SF89-Y15KW，SF89-Y160M4，SF89-Y2.2KW，SF89-Y3KW，SF89-Y4KW，SF89-Y5.5KW，SF89-Y7.5KW，SF89-Y71M4，SF89-Y80M4，SF89-Y90M4，SF89-YB100M4，SF89-YB112M4，SF89-YB132M4，SF89-YB160M4，SF89-YB71M4，SF89-YB80M4，SF89-YB90M4，SF89-YDP100M4，SF89-YDP112M4，SF89-YDP132M4，SF89-YDP160M4，SF89-YDP71M4，SF89-YDP80M4，SF89-YDP90M4，SF89-YE100M4，SF89-YE112M4，SF89-YE132M4，SF89-YE160M4，SF89-YE71M4，SF89-YE80M4，SF89-YE90M4，SF89-YEJ100M4，SF89-YEJ112M4，SF89-YEJ132M4，SF89-YEJ160M4，SF89-YEJ71M4，SF89-YEJ80M4，SF89-YEJ90M4，SF89-YEJB100M4，SF89-YEJB112M4，SF89-YEJB132M4，SF89-YEJB160M4，SF89-YEJB71M4，SF89-YEJB80M4，SF89-YEJB90M4，SF89-YP100M4，SF89-YP112M4，SF89-YP132M4，SF89-YP160M4，SF89-YP71M4，SF89-YP80M4，SF89-YP90M4，SF89-YPB100M4，SF89-YPB112M4，SF89-YPB132M4，SF89-YPB160M4，SF89-YPB71M4，SF89-YPB80M4，SF89-YPB90M4，SF89-YPE100M4，SF89-YPE112M4，SF89-YPE132M4，SF89-YPE160M4，SF89-YPE71M4，SF89-YPE80M4，SF89-YPE90M4，SF89-YS100M4，SF89-YS112M4，SF89-YS132M4，SF89-YS160M4，SF89-YS71M4，SF89-YS80M4，SF89-YS90M4，SF89-YVB100M4，SF89-YVB112M4，SF89-YVB132M4，SF89-YVB160M4，SF89-YVB71M4，SF89-YVB80M4，SF89-YVB90M4，SF89-YVP100M4，SF89-YVP112M4，SF89-YVP132M4，SF89-YVP160M4，SF89-YVP71M4，SF89-YVP80M4，SF89-YVP90M4，SF89-YVPEJ100M4，SF89-YVPEJ112M4，SF89-YVPEJ132M4，SF89-YVPEJ160M4，SF89-YVPEJ71M4，SF89-YVPEJ80M4，SF89-YVPEJ90M4。

SF89減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S89減速機
