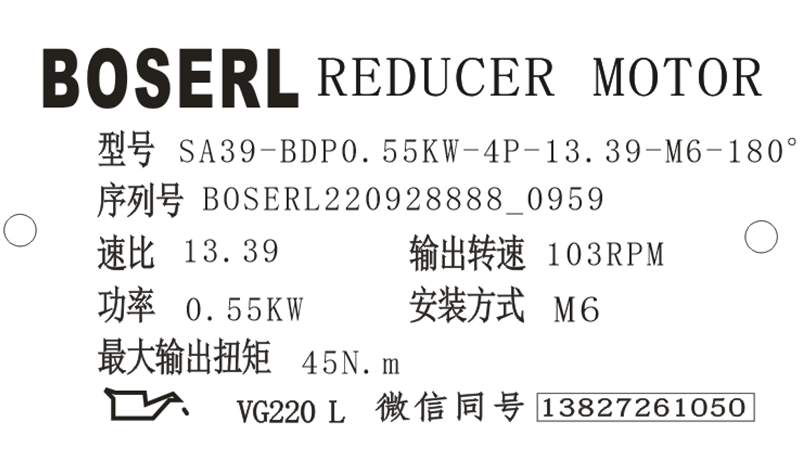

SA39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA39減速器選型樣本。

SA39-BDP0.55KW-4P-13.39-M6-180°

SA：系列代號

39：減速機規格代號

BDP：電機

0.55KW：電機功率

4P：電機級數

13.39：減速機傳動比

M6：減速機安裝位置

180°：接線盒位置

SA39減速器逆止器安裝：

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

SA39減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。自鎖減速機

SA39減速器無油位檢查螺栓和安裝蓋：

通過密封螺栓檢查油位:由于SA39減速器無油位螺栓或安裝蓋，因此需要通過檢查孔進行檢查；按照M5或M6的安裝位置防止SA39減速器，即檢查孔朝上；擰出密封螺栓1（見下圖）；將測量標尺垂直通過檢查孔伸入減速器箱體的底部，然后再將測量標尺重新從檢查孔中垂直抽出（見下圖）。

用油標卡尺測出測量標尺上所沾的潤滑油長度（見下圖）。

將側的值“X”與下表中根據安裝位置所列的最小值進行比較，必要情況下調節油位高度；重新擰緊密封螺栓。伺服電機連接減速機

SA39減速器型號：

XDSA37-Y0.12KW，XDSA37-Y0.18KW，XDSA37-Y0.25KW，XDSA37-Y0.37KW，XDSA37-Y0.55KW，XDSA37-Y0.75KW，XDSA37-Y1.1KW，XDSA37-Y1.5KW，XDSA37-Y63M4，XDSA37-Y71M4，XDSA37-Y80M4，XDSA37-Y90M4，XDSA37-YB63M4，XDSA37-YB71M4，XDSA37-YB80M4，XDSA37-YB90M4，XDSA37-YDP63M4，XDSA37-YDP71M4，XDSA37-YDP80M4，XDSA37-YDP90M4，XDSA37-YE63M4，XDSA37-YE71M4，XDSA37-YE80M4，XDSA37-YE90M4，XDSA37-YEJ63M4，XDSA37-YEJ71M4，XDSA37-YEJ80M4，XDSA37-YEJ90M4，XDSA37-YEJB63M4，XDSA37-YEJB71M4，XDSA37-YEJB80M4，XDSA37-YEJB90M4，XDSA37-YP63M4，XDSA37-YP71M4，XDSA37-YP80M4，XDSA37-YP90M4，XDSA37-YPB63M4，XDSA37-YPB71M4，XDSA37-YPB80M4，XDSA37-YPB90M4，XDSA37-YPE63M4，XDSA37-YPE71M4，XDSA37-YPE80M4，XDSA37-YPE90M4，XDSA37-YS63M4，XDSA37-YS71M4，XDSA37-YS80M4，XDSA37-YS90M4，XDSA37-YVB63M4，XDSA37-YVB71M4，XDSA37-YVB80M4，XDSA37-YVB90M4，XDSA37-YVP63M4，XDSA37-YVP71M4，XDSA37-YVP80M4，XDSA37-YVP90M4，XDSA37-YVPEJ63M4，XDSA37-YVPEJ71M4，XDSA37-YVPEJ80M4，XDSA37-YVPEJ90M4，SA39-Y0.12KW，SA39-Y0.18KW，SA39-Y0.25KW，SA39-Y0.37KW，SA39-Y0.55KW，SA39-Y0.75KW，SA39-Y1.1KW，SA39-Y1.5KW，SA39-Y63M4，SA39-Y71M4，SA39-Y80M4，SA39-Y90M4，SA39-YB63M4，SA39-YB71M4，SA39-YB80M4，SA39-YB90M4，SA39-YDP63M4，SA39-YDP71M4，SA39-YDP80M4，SA39-YDP90M4，SA39-YE63M4，SA39-YE71M4，SA39-YE80M4，SA39-YE90M4，SA39-YEJ63M4，SA39-YEJ71M4，SA39-YEJ80M4，SA39-YEJ90M4，SA39-YEJB63M4，SA39-YEJB71M4，SA39-YEJB80M4，SA39-YEJB90M4，SA39-YP63M4，SA39-YP71M4，SA39-YP80M4，SA39-YP90M4，SA39-YPB63M4，SA39-YPB71M4，SA39-YPB80M4，SA39-YPB90M4，SA39-YPE63M4，SA39-YPE71M4，SA39-YPE80M4，SA39-YPE90M4，SA39-YS63M4，SA39-YS71M4，SA39-YS80M4，SA39-YS90M4，SA39-YVB63M4，SA39-YVB71M4，SA39-YVB80M4，SA39-YVB90M4，SA39-YVP63M4，SA39-YVP71M4，SA39-YVP80M4，SA39-YVP90M4，SA39-YVPEJ63M4，SA39-YVPEJ71M4，SA39-YVPEJ80M4，SA39-YVPEJ90M4，JCSA37-Y0.12KW，JCSA37-Y0.18KW，JCSA37-Y0.25KW，JCSA37-Y0.37KW，JCSA37-Y0.55KW，JCSA37-Y0.75KW，JCSA37-Y1.1KW，JCSA37-Y1.5KW，JCSA37-Y63M4，JCSA37-Y71M4，JCSA37-Y80M4，JCSA37-Y90M4，JCSA37-YB63M4，JCSA37-YB71M4，JCSA37-YB80M4，JCSA37-YB90M4，JCSA37-YDP63M4，JCSA37-YDP71M4，JCSA37-YDP80M4，JCSA37-YDP90M4，JCSA37-YE63M4，JCSA37-YE71M4，JCSA37-YE80M4，JCSA37-YE90M4，JCSA37-YEJ63M4，JCSA37-YEJ71M4，JCSA37-YEJ80M4，JCSA37-YEJ90M4，JCSA37-YEJB63M4，JCSA37-YEJB71M4，JCSA37-YEJB80M4，JCSA37-YEJB90M4，JCSA37-YP63M4，JCSA37-YP71M4，JCSA37-YP80M4，JCSA37-YP90M4，JCSA37-YPB63M4，JCSA37-YPB71M4，JCSA37-YPB80M4，JCSA37-YPB90M4，JCSA37-YPE63M4，JCSA37-YPE71M4，JCSA37-YPE80M4，JCSA37-YPE90M4，JCSA37-YS63M4，JCSA37-YS71M4，JCSA37-YS80M4，JCSA37-YS90M4，JCSA37-YVB63M4，JCSA37-YVB71M4，JCSA37-YVB80M4，JCSA37-YVB90M4，JCSA37-YVP63M4，JCSA37-YVP71M4，JCSA37-YVP80M4，JCSA37-YVP90M4，JCSA37-YVPEJ63M4，JCSA37-YVPEJ71M4，JCSA37-YVPEJ80M4，JCSA37-YVPEJ90M4，YQSA37-Y0.12KW，YQSA37-Y0.18KW，YQSA37-Y0.25KW，YQSA37-Y0.37KW，YQSA37-Y0.55KW，YQSA37-Y0.75KW，YQSA37-Y1.1KW，YQSA37-Y1.5KW，YQSA37-Y63M4，YQSA37-Y71M4，YQSA37-Y80M4，YQSA37-Y90M4，YQSA37-YB63M4，YQSA37-YB71M4，YQSA37-YB80M4，YQSA37-YB90M4，YQSA37-YDP63M4，YQSA37-YDP71M4，YQSA37-YDP80M4，YQSA37-YDP90M4，YQSA37-YE63M4，YQSA37-YE71M4，YQSA37-YE80M4，YQSA37-YE90M4，YQSA37-YEJ63M4，YQSA37-YEJ71M4，YQSA37-YEJ80M4，YQSA37-YEJ90M4，YQSA37-YEJB63M4，YQSA37-YEJB71M4，YQSA37-YEJB80M4，YQSA37-YEJB90M4，YQSA37-YP63M4，YQSA37-YP71M4，YQSA37-YP80M4，YQSA37-YP90M4，YQSA37-YPB63M4，YQSA37-YPB71M4，YQSA37-YPB80M4，YQSA37-YPB90M4，YQSA37-YPE63M4，YQSA37-YPE71M4，YQSA37-YPE80M4，YQSA37-YPE90M4，YQSA37-YS63M4，YQSA37-YS71M4，YQSA37-YS80M4，YQSA37-YS90M4，YQSA37-YVB63M4，YQSA37-YVB71M4，YQSA37-YVB80M4，YQSA37-YVB90M4，YQSA37-YVP63M4，YQSA37-YVP71M4，YQSA37-YVP80M4，YQSA37-YVP90M4，YQSA37-YVPEJ63M4，YQSA37-YVPEJ71M4，YQSA37-YVPEJ80M4，YQSA37-YVPEJ90M4，SWA37-Y0.12KW，SWA37-Y0.18KW，SWA37-Y0.25KW，SWA37-Y0.37KW，SWA37-Y0.55KW，SWA37-Y0.75KW，SWA37-Y1.1KW，SWA37-Y1.5KW，SWA37-Y63M4，SWA37-Y71M4，SWA37-Y80M4，SWA37-Y90M4，SWA37-YB63M4，SWA37-YB71M4，SWA37-YB80M4，SWA37-YB90M4，SWA37-YDP63M4，SWA37-YDP71M4，SWA37-YDP80M4，SWA37-YDP90M4，SWA37-YE63M4，SWA37-YE71M4，SWA37-YE80M4，SWA37-YE90M4，SWA37-YEJ63M4，SWA37-YEJ71M4，SWA37-YEJ80M4，SWA37-YEJ90M4，SWA37-YEJB63M4，SWA37-YEJB71M4，SWA37-YEJB80M4，SWA37-YEJB90M4，SWA37-YP63M4，SWA37-YP71M4，SWA37-YP80M4，SWA37-YP90M4，SWA37-YPB63M4，SWA37-YPB71M4，SWA37-YPB80M4，SWA37-YPB90M4，SWA37-YPE63M4，SWA37-YPE71M4，SWA37-YPE80M4，SWA37-YPE90M4，SWA37-YS63M4，SWA37-YS71M4，SWA37-YS80M4，SWA37-YS90M4，SWA37-YVB63M4，SWA37-YVB71M4，SWA37-YVB80M4，SWA37-YVB90M4，SWA37-YVP63M4，SWA37-YVP71M4，SWA37-YVP80M4，SWA37-YVP90M4，SWA37-YVPEJ63M4，SWA37-YVPEJ71M4，SWA37-YVPEJ80M4，SWA37-YVPEJ90M4，SA37SF80，SA37SF90，SA37SF100，SA37SF112，SA37SF115，SA37SF140，SA37SF160，SA37SF190。
