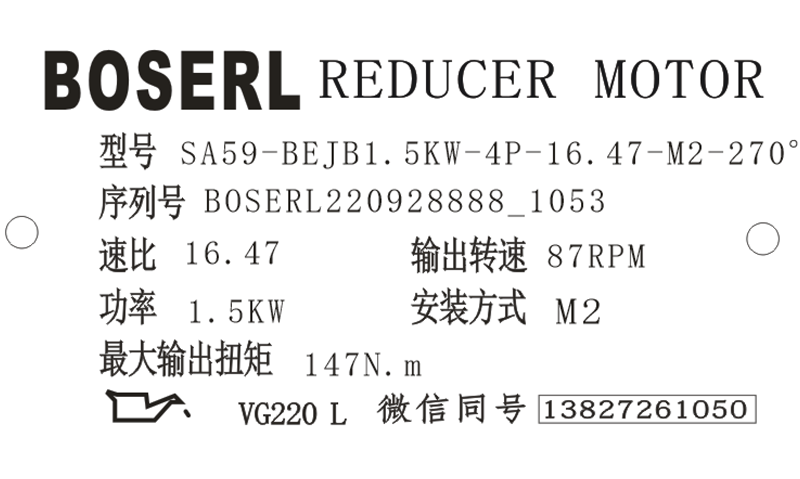

SA59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA59減速機選型樣本。
SA59-BEJB1.5KW-4P-16.47-M2-270°
SA：系列代號
59：減速機規格代號
BEJB：電機
1.5KW：電機功率
4P：電機級數
16.47：減速機傳動比
M2：減速機安裝位置
270°：接線盒位置
SA59減速機扭力臂安裝：
裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA59減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機
減速機型號 | 螺栓 | 擰緊扭矩 |
SA39減速機 | 4xM6x16-8.8 | 11Nm |
SA49減速機 | 4xM8x20-8.8 | 25Nm |
SA59減速機 | 6xM8x20-8.8 | 25Nm |
SA69減速機 | 8xM12x25-8.8 | 86Nm |
SA79減速機 | 8xM12x35-8.8 | 86Nm |
SA89減速機 | 8xM16x35-8.8 | 210Nm |
SA99減速機 | 8xM16x35-8.8 | 210Nm |
SA59減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA59減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。伺服電機連接減速機
SA59減速機型號：
WSA57-Y0.18KW，WSA57-Y0.25KW，WSA57-Y0.37KW，WSA57-Y0.55KW，WSA57-Y0.75KW，WSA57-Y1.1KW，WSA57-Y1.5KW，WSA57-Y100M4，WSA57-Y2.2KW，WSA57-Y3KW，WSA57-Y63M4，WSA57-Y71M4，WSA57-Y80M4，WSA57-Y90M4，WSA57-YB100M4，WSA57-YB63M4，WSA57-YB71M4，WSA57-YB80M4，WSA57-YB90M4，WSA57-YDP100M4，WSA57-YDP63M4，WSA57-YDP71M4，WSA57-YDP80M4，WSA57-YDP90M4，WSA57-YE100M4，WSA57-YE63M4，WSA57-YE71M4，WSA57-YE80M4，WSA57-YE90M4，WSA57-YEJ100M4，WSA57-YEJ63M4，WSA57-YEJ71M4，WSA57-YEJ80M4，WSA57-YEJ90M4，WSA57-YEJB100M4，WSA57-YEJB63M4，WSA57-YEJB71M4，WSA57-YEJB80M4，WSA57-YEJB90M4，WSA57-YP100M4，WSA57-YP63M4，WSA57-YP71M4，WSA57-YP80M4，WSA57-YP90M4，WSA57-YPB100M4，WSA57-YPB63M4，WSA57-YPB71M4，WSA57-YPB80M4，WSA57-YPB90M4，WSA57-YPE100M4，WSA57-YPE63M4，WSA57-YPE71M4，WSA57-YPE80M4，WSA57-YPE90M4，WSA57-YS100M4，WSA57-YS63M4，WSA57-YS71M4，WSA57-YS80M4，WSA57-YS90M4，WSA57-YVB100M4，WSA57-YVB63M4，WSA57-YVB71M4，WSA57-YVB80M4，WSA57-YVB90M4，WSA57-YVP100M4，WSA57-YVP63M4，WSA57-YVP71M4，WSA57-YVP80M4，WSA57-YVP90M4，WSA57-YVPEJ100M4，WSA57-YVPEJ63M4，WSA57-YVPEJ71M4，WSA57-YVPEJ80M4，WSA57-YVPEJ90M4，NSA57-Y0.18KW，NSA57-Y0.25KW，NSA57-Y0.37KW，NSA57-Y0.55KW，NSA57-Y0.75KW，NSA57-Y1.1KW，NSA57-Y1.5KW，NSA57-Y100M4，NSA57-Y2.2KW，NSA57-Y3KW，NSA57-Y63M4，NSA57-Y71M4，NSA57-Y80M4，NSA57-Y90M4，NSA57-YB100M4，NSA57-YB63M4，NSA57-YB71M4，NSA57-YB80M4，NSA57-YB90M4，NSA57-YDP100M4，NSA57-YDP63M4，NSA57-YDP71M4，NSA57-YDP80M4，NSA57-YDP90M4，NSA57-YE100M4，NSA57-YE63M4，NSA57-YE71M4，NSA57-YE80M4，NSA57-YE90M4，NSA57-YEJ100M4，NSA57-YEJ63M4，NSA57-YEJ71M4，NSA57-YEJ80M4，NSA57-YEJ90M4，NSA57-YEJB100M4，NSA57-YEJB63M4，NSA57-YEJB71M4，NSA57-YEJB80M4，NSA57-YEJB90M4，NSA57-YP100M4，NSA57-YP63M4，NSA57-YP71M4，NSA57-YP80M4，NSA57-YP90M4，NSA57-YPB100M4，NSA57-YPB63M4，NSA57-YPB71M4，NSA57-YPB80M4，NSA57-YPB90M4，NSA57-YPE100M4，NSA57-YPE63M4，NSA57-YPE71M4，NSA57-YPE80M4，NSA57-YPE90M4，NSA57-YS100M4，NSA57-YS63M4，NSA57-YS71M4，NSA57-YS80M4，NSA57-YS90M4，NSA57-YVB100M4，NSA57-YVB63M4，NSA57-YVB71M4，NSA57-YVB80M4，NSA57-YVB90M4，NSA57-YVP100M4，NSA57-YVP63M4，NSA57-YVP71M4，NSA57-YVP80M4，NSA57-YVP90M4，NSA57-YVPEJ100M4，NSA57-YVPEJ63M4，NSA57-YVPEJ71M4，NSA57-YVPEJ80M4，NSA57-YVPEJ90M4，ASA57-Y0.18KW，ASA57-Y0.25KW，ASA57-Y0.37KW，ASA57-Y0.55KW，ASA57-Y0.75KW，ASA57-Y1.1KW，ASA57-Y1.5KW，ASA57-Y100M4，ASA57-Y2.2KW，ASA57-Y3KW，ASA57-Y63M4，ASA57-Y71M4，ASA57-Y80M4，ASA57-Y90M4，ASA57-YB100M4，ASA57-YB63M4，ASA57-YB71M4，ASA57-YB80M4，ASA57-YB90M4，ASA57-YDP100M4，ASA57-YDP63M4，ASA57-YDP71M4，ASA57-YDP80M4，ASA57-YDP90M4，ASA57-YE100M4，ASA57-YE63M4，ASA57-YE71M4，ASA57-YE80M4，ASA57-YE90M4，ASA57-YEJ100M4，ASA57-YEJ63M4，ASA57-YEJ71M4，ASA57-YEJ80M4，ASA57-YEJ90M4，ASA57-YEJB100M4，ASA57-YEJB63M4，ASA57-YEJB71M4，ASA57-YEJB80M4，ASA57-YEJB90M4，ASA57-YP100M4，ASA57-YP63M4，ASA57-YP71M4，ASA57-YP80M4，ASA57-YP90M4，ASA57-YPB100M4，ASA57-YPB63M4，ASA57-YPB71M4，ASA57-YPB80M4，ASA57-YPB90M4，ASA57-YPE100M4，ASA57-YPE63M4，ASA57-YPE71M4，ASA57-YPE80M4，ASA57-YPE90M4，ASA57-YS100M4，ASA57-YS63M4，ASA57-YS71M4，ASA57-YS80M4，ASA57-YS90M4，ASA57-YVB100M4，ASA57-YVB63M4，ASA57-YVB71M4，ASA57-YVB80M4，ASA57-YVB90M4，ASA57-YVP100M4，ASA57-YVP63M4，ASA57-YVP71M4，ASA57-YVP80M4，ASA57-YVP90M4，ASA57-YVPEJ100M4，ASA57-YVPEJ63M4，ASA57-YVPEJ71M4，ASA57-YVPEJ80M4，ASA57-YVPEJ90M4，SSA57-Y0.18KW，SSA57-Y0.25KW，SSA57-Y0.37KW，SSA57-Y0.55KW，SSA57-Y0.75KW，SSA57-Y1.1KW，SSA57-Y1.5KW，SSA57-Y100M4，SSA57-Y2.2KW，SSA57-Y3KW，SSA57-Y63M4，SSA57-Y71M4，SSA57-Y80M4，SSA57-Y90M4，SSA57-YB100M4，SSA57-YB63M4，SSA57-YB71M4，SSA57-YB80M4，SSA57-YB90M4，SSA57-YDP100M4，SSA57-YDP63M4，SSA57-YDP71M4，SSA57-YDP80M4，SSA57-YDP90M4，SSA57-YE100M4，SSA57-YE63M4，SSA57-YE71M4，SSA57-YE80M4，SSA57-YE90M4，SSA57-YEJ100M4，SSA57-YEJ63M4，SSA57-YEJ71M4，SSA57-YEJ80M4，SSA57-YEJ90M4，SSA57-YEJB100M4，SSA57-YEJB63M4，SSA57-YEJB71M4，SSA57-YEJB80M4，SSA57-YEJB90M4，SSA57-YP100M4，SSA57-YP63M4，SSA57-YP71M4，SSA57-YP80M4，SSA57-YP90M4，SSA57-YPB100M4，SSA57-YPB63M4，SSA57-YPB71M4，SSA57-YPB80M4，SSA57-YPB90M4，SSA57-YPE100M4，SSA57-YPE63M4，SSA57-YPE71M4，SSA57-YPE80M4，SSA57-YPE90M4，SSA57-YS100M4，SSA57-YS63M4，SSA57-YS71M4，SSA57-YS80M4，SSA57-YS90M4，SSA57-YVB100M4，SSA57-YVB63M4，SSA57-YVB71M4，SSA57-YVB80M4，SSA57-YVB90M4，SSA57-YVP100M4，SSA57-YVP63M4，SSA57-YVP71M4，SSA57-YVP80M4，SSA57-YVP90M4，SSA57-YVPEJ100M4，SSA57-YVPEJ63M4，SSA57-YVPEJ71M4，SSA57-YVPEJ80M4，SSA57-YVPEJ90M4，GSA59-Y0.18KW，GSA59-Y0.25KW，GSA59-Y0.37KW，GSA59-Y0.55KW，GSA59-Y0.75KW，GSA59-Y1.1KW，GSA59-Y1.5KW，GSA59-Y100M4，GSA59-Y2.2KW，GSA59-Y3KW，GSA59-Y63M4，GSA59-Y71M4，GSA59-Y80M4，GSA59-Y90M4，GSA59-YB100M4，GSA59-YB63M4，GSA59-YB71M4，GSA59-YB80M4，GSA59-YB90M4，GSA59-YDP100M4，GSA59-YDP63M4，GSA59-YDP71M4，GSA59-YDP80M4，GSA59-YDP90M4，GSA59-YE100M4，GSA59-YE63M4，GSA59-YE71M4，GSA59-YE80M4，GSA59-YE90M4，GSA59-YEJ100M4，GSA59-YEJ63M4，GSA59-YEJ71M4，GSA59-YEJ80M4，GSA59-YEJ90M4，GSA59-YEJB100M4，GSA59-YEJB63M4，GSA59-YEJB71M4，GSA59-YEJB80M4，GSA59-YEJB90M4，GSA59-YP100M4，GSA59-YP63M4，GSA59-YP71M4，GSA59-YP80M4，GSA59-YP90M4，GSA59-YPB100M4，GSA59-YPB63M4，GSA59-YPB71M4，GSA59-YPB80M4，GSA59-YPB90M4，GSA59-YPE100M4，GSA59-YPE63M4，GSA59-YPE71M4，GSA59-YPE80M4，GSA59-YPE90M4，GSA59-YS100M4，GSA59-YS63M4，GSA59-YS71M4，GSA59-YS80M4，GSA59-YS90M4，GSA59-YVB100M4，GSA59-YVB63M4，GSA59-YVB71M4，GSA59-YVB80M4，GSA59-YVB90M4，GSA59-YVP100M4，GSA59-YVP63M4，GSA59-YVP71M4，GSA59-YVP80M4，GSA59-YVP90M4，GSA59-YVPEJ100M4，GSA59-YVPEJ63M4，GSA59-YVPEJ71M4，GSA59-YVPEJ80M4，GSA59-YVPEJ90M4。
SA59減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ccmqzx.com/product/list-saxiliejiansuji-cn.html
推薦類似型號：S59減速機
關鍵詞:私服電機帶減速機一體機_伺服電機連接減速機_SA系列減速機_私服電機減速機_GSA系列減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列減速機型號：SA39減速機,SA49減速機,SA59減速機,SA69減速機,SA79減速機,SA89減速機,SA99齒輪減速電機
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
